ABB 2CPX033812R9999

KA4216

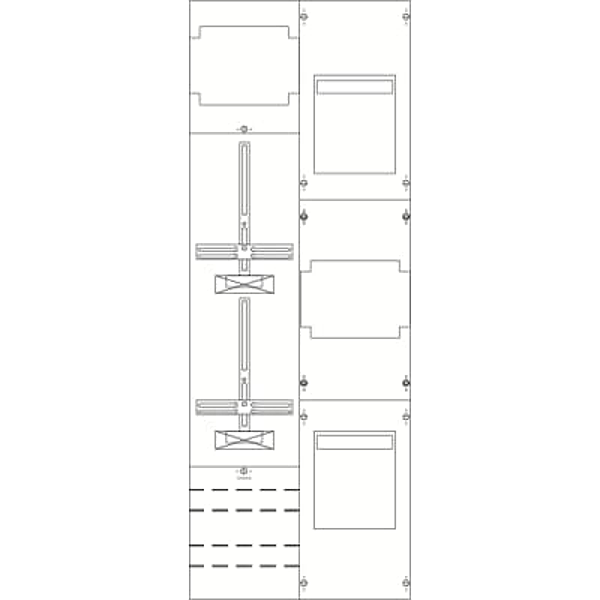

KA4216 Transformer Meterboard H5/W2

Descripción

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 200 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Room for test terminal, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250 A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 95 qmm, Incomer: L1-L3 M10, PE+N M10, Outgoing: L1-L3 M10, PE+N M10, Connection N+PE (M8), Note: Secundary wiringset to be used on site, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
