1SBN072305R1000
LF38-4

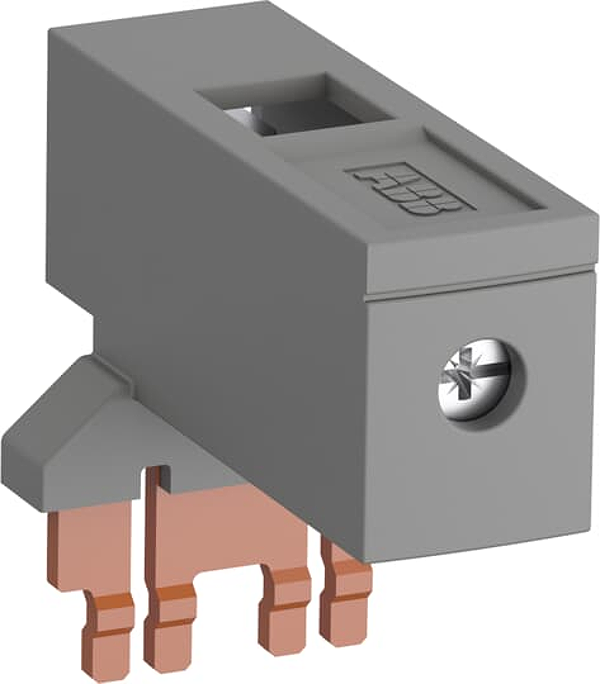

LF38-4 Connecting Strip
Parallel and series connection of 3-pole contactors:. To obtain a star point (3 parallel-connected poles). To connect poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles: LP, LY, LH, LF, LG. The relevant cable cross-sectional area may limit the maximum permissible current. Consult information in table below. To connect poles in series and thus increase the DC voltage controlled by the poles: LP, LY (only LY16-4 and LY38-4 secable strips).
ECCN: | |
País de origen: | IN |
EAN: | |
Peso: | 0,04 kg |
Longitud: | 0,052 m |
Anchura: | 0,0326 m |
Altura: | 0,0462 m |
