2423820000
SAID-M8B-3S-THR
Typ: | SAID-M8B-3S-THR |
Best.-Nr.: | 2423820000 |

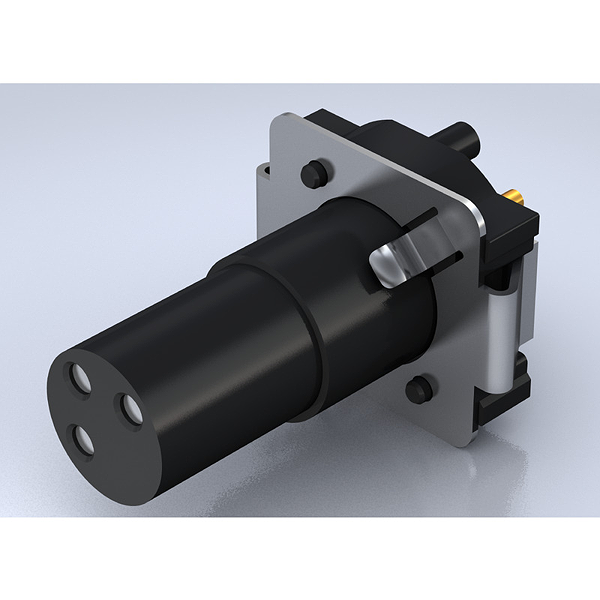

Ausführung: | Einbaustecker, M8, Buchse, M 12, Polzahl: 3 |
GTIN (EAN): | 4050118430073 |
VPE: | 25 Stück |
Nettogewicht: | 2,64 g |
REACH SVHC: | Lead 7439-92-1 |
Codierung: | M8 = keine |
Gehäuse: | M8 Buchse |
Polzahl: | 3 |
Schirmanschluss: | Nein |
Nennspannung: | 60 V |
Nennspannung: | 60 V (3-polig) / 30 V (4-,5- und 8-polig) |
Nennstrom: | 4 A |
Nennstrom: | 4 A (3-, 4- und 5-polig) / 1,5 A (8-polig) |
Temperaturbereich: | -25…95 °C |
Schutzart: | IP67 |
Kontaktoberfläche: | Au (Gold) |
Gehäusebasismaterial: | LCP |
Anschlussgewinde: | M8 |
Anzugsdrehmoment: | M8: 0,5 Nm |
Isolationswiderstand: | 100 MΩ |
Verschmutzungsgrad: | 3 (2 innerhalb des abgedichteten Bereiches) |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontermuttermaterial: | CuZn, vernickelt |
Flanschgehäusematerial: | CuZn, vernickelt |
Isolationswiderstand: | 100 MΩ |
Polreihenzahl: | 1 |
Polzahl: | 3 |
Schutzart: | IP67 |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontaktoberfläche: | Au (Gold) |
ETIM 6.0: | EC000438 |
ETIM 7.0: | EC000438 |
eClass 9.1: | 27-44-02-05 |
eClass 10.0: | 27-44-02-23 |
ROHS: | Konform |
Typ: | SAID-M8B-3S-THR |
Best.-Nr.: | 2423820000 |
Ausführung: | Einbaustecker, M8, Buchse, M 12, Polzahl: 3 |
GTIN (EAN): | 4050118430073 |
VPE: | 25 Stück |
Nettogewicht: | 2,64 g |
REACH SVHC: | Lead 7439-92-1 |
Codierung: | M8 = keine |
Gehäuse: | M8 Buchse |
Polzahl: | 3 |
Schirmanschluss: | Nein |
Nennspannung: | 60 V |
Nennspannung: | 60 V (3-polig) / 30 V (4-,5- und 8-polig) |
Nennstrom: | 4 A |
Nennstrom: | 4 A (3-, 4- und 5-polig) / 1,5 A (8-polig) |
Temperaturbereich: | -25…95 °C |
Schutzart: | IP67 |
Kontaktoberfläche: | Au (Gold) |
Gehäusebasismaterial: | LCP |
Anschlussgewinde: | M8 |
Anzugsdrehmoment: | M8: 0,5 Nm |
Isolationswiderstand: | 100 MΩ |
Verschmutzungsgrad: | 3 (2 innerhalb des abgedichteten Bereiches) |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontermuttermaterial: | CuZn, vernickelt |
Flanschgehäusematerial: | CuZn, vernickelt |
Isolationswiderstand: | 100 MΩ |
Polreihenzahl: | 1 |
Polzahl: | 3 |
Schutzart: | IP67 |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontaktoberfläche: | Au (Gold) |
ETIM 6.0: | EC000438 |
ETIM 7.0: | EC000438 |
eClass 9.1: | 27-44-02-05 |
eClass 10.0: | 27-44-02-23 |
ROHS: | Konform |
ECCN: | |
Ursprungsland: | |
EAN: | |
Gewicht: | 0,003 kg |
Länge: | 0,00 m |
Breite: | 0,00 m |
Höhe: | 0,00 m |
