2423730000

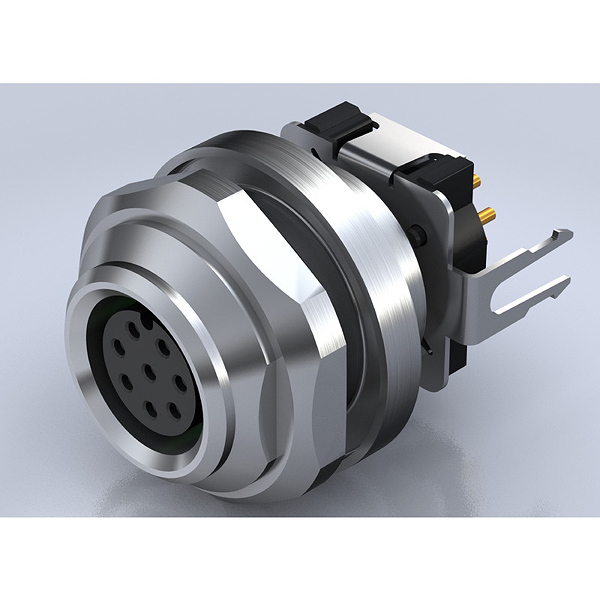

SAIE-M8B-8S-H10TL
Typ: | SAIE-M8B-8S-H10TL |
Best.-Nr.: | 2423730000 |
Ausführung: | Einbaustecker, M8, M 12, Polzahl: 8, Hinterwandmontage |
GTIN (EAN): | 4050118430219 |
VPE: | 25 Stück |
Nettogewicht: | 10,28 g |
REACH SVHC: | Lead 7439-92-1 |
Codierung: | M8 = keine |
Einbauhöhe: | 10 mm |
Gehäuse: | M8 Buchse |
Gehäuseoberfläche: | vernickelt |
Montageart: | Hinterwandmontage |
Montagegewinde: | Stift: M8 / Buchse: M12 |
Polzahl: | 8 |
Schirmanschluss: | Nein |
Nennspannung: | 30 V |
Nennspannung: | 60 V (3-polig) / 30 V (4-,5- und 8-polig) |
Nennstrom: | 1,5 A |
Nennstrom: | 4 A (3-, 4- und 5-polig) / 1,5 A (8-polig) |
Temperaturbereich: | -30…80 °C |
Schutzart: | IP67 |
Kontaktoberfläche: | Au (Gold) |
Gehäusebasismaterial: | CuZn, vernickelt |
Anschlussgewinde: | M8 |
Anzugsdrehmoment: | M8: 0,5 Nm |
Montagegewinde: | M 12 |
Montagedrehmomentbereich: | 1.2 Nm |
Isolationswiderstand: | 100 MΩ |
Verschmutzungsgrad: | 3 (2 innerhalb des abgedichteten Bereiches) |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Dichtungsmaterial: | FPM |
Kontermuttermaterial: | CuZn, vernickelt |
Flanschgehäusematerial: | CuZn, vernickelt |
Vergussmaterial: | PUR |
Isolationswiderstand: | 100 MΩ |
Polreihenzahl: | 1 |
Polzahl: | 8 |
Schutzart: | IP67 |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontaktoberfläche: | Au (Gold) |
ETIM 6.0: | EC002638 |
ETIM 7.0: | EC002638 |
eClass 9.0: | 27-44-03-09 |
eClass 9.1: | 27-44-03-09 |
eClass 10.0: | 27-44-03-09 |
ROHS: | Konform |
Typ: | SAIE-M8B-8S-H10TL |
Best.-Nr.: | 2423730000 |
Ausführung: | Einbaustecker, M8, M 12, Polzahl: 8, Hinterwandmontage |
GTIN (EAN): | 4050118430219 |
VPE: | 25 Stück |
Nettogewicht: | 10,28 g |
REACH SVHC: | Lead 7439-92-1 |
Codierung: | M8 = keine |
Einbauhöhe: | 10 mm |
Gehäuse: | M8 Buchse |
Gehäuseoberfläche: | vernickelt |
Montageart: | Hinterwandmontage |
Montagegewinde: | Stift: M8 / Buchse: M12 |
Polzahl: | 8 |
Schirmanschluss: | Nein |
Nennspannung: | 30 V |
Nennspannung: | 60 V (3-polig) / 30 V (4-,5- und 8-polig) |
Nennstrom: | 1,5 A |
Nennstrom: | 4 A (3-, 4- und 5-polig) / 1,5 A (8-polig) |
Temperaturbereich: | -30…80 °C |
Schutzart: | IP67 |
Kontaktoberfläche: | Au (Gold) |
Gehäusebasismaterial: | CuZn, vernickelt |
Anschlussgewinde: | M8 |
Anzugsdrehmoment: | M8: 0,5 Nm |
Montagegewinde: | M 12 |
Montagedrehmomentbereich: | 1.2 Nm |
Isolationswiderstand: | 100 MΩ |
Verschmutzungsgrad: | 3 (2 innerhalb des abgedichteten Bereiches) |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Dichtungsmaterial: | FPM |
Kontermuttermaterial: | CuZn, vernickelt |
Flanschgehäusematerial: | CuZn, vernickelt |
Vergussmaterial: | PUR |
Isolationswiderstand: | 100 MΩ |
Polreihenzahl: | 1 |
Polzahl: | 8 |
Schutzart: | IP67 |
Steckzyklen: | ≥ 100 |
Kontaktmaterial: | CuZn |
Kontaktoberfläche: | Au (Gold) |
ETIM 6.0: | EC002638 |
ETIM 7.0: | EC002638 |
eClass 9.0: | 27-44-03-09 |
eClass 9.1: | 27-44-03-09 |
eClass 10.0: | 27-44-03-09 |
ROHS: | Konform |
