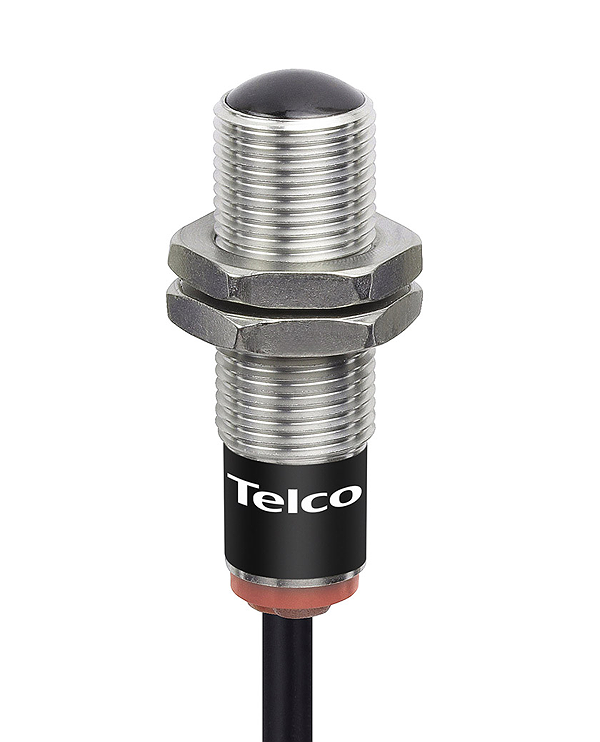

Telco 8858
LT-110L-TS38-15
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Technische Daten
| Function: | Receiver |
| Sensing Range: | Up to 40 m |
| Indicators: | Yes |
| Optical Angle: | +/- 3° (opening) |
| Housing: | M12 x 1 |
| Housing Material: | Stainless Steel |
| Connection: | 15 m cable |
| Function: | Transmitter |
| Sensing Range: | Up to 40 m |
| Indicators: | Yes |
| Optical Angle: | +/- 5° (emission) |
| Housing: | M12 x 1 |
| Housing Material: | Stainless Steel |
| Connection: | 15 m cable |
| Transmitter Diode: | Ga Al As, (880 nm) |
| Output Indicator: | Yellow LED |
| Light Source: | Infrared |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Sensor Housing: | Stainless Steel (AISI 316) |
| Cable: | 2 x 0,25 mm² |
| Cable Sleeve: | PVC Ø 4,0 mm |
| Min. Cable Bending Radius: | 45 mm |
| Vibration: | 10 – 55 Hz, 0,5 mm |
| Shock: | 30 g |
| Operation Temperature: | – 25 to +65 °C |
| Storage Temperature: | – 40 to +80 °C |
| Sealing Class: | IP 67 |
| Light Immunity 20˚: | > 100 000 lux |
