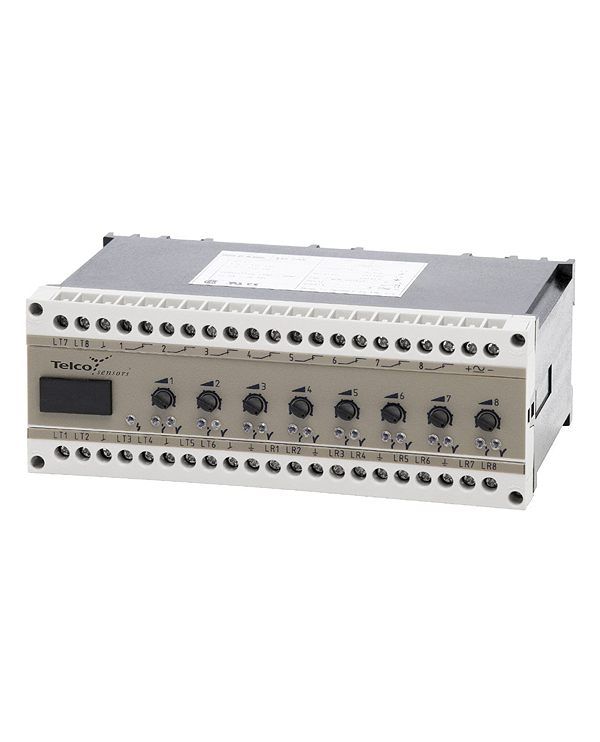

Article image 5386

Telco 5386

MPA 81 A 503

Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"

Beschreibung

Technische Daten

Function: Amplifier
Supply Voltage: 24 V dc
Number of Channels: 8
Sensing Range: 35 m
Sensitivity Adjustment: Manual
Output: 8 individual relays
Housing: Screw terminals
Supply Voltage: 24 V dc
Voltage Tolerance: +/– 15 %
Current Consumption: Max. 6,5 VA
Response Time ton / toff, Relay: Short range: 55 ms/55 ms Long Range: 100 ms/100 ms
Output, Relay: 1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A
Power On Indicator: Green LED
Output Indicator: Red LED
Signal Level Indicator: Green LED
Hysteresis: Approx. 35 %
Operation Frequency, Relay: Short range: 9 Hz / Long Range: 5 Hz
Housing Material: Polycarbonate
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 30
