Article image 108350

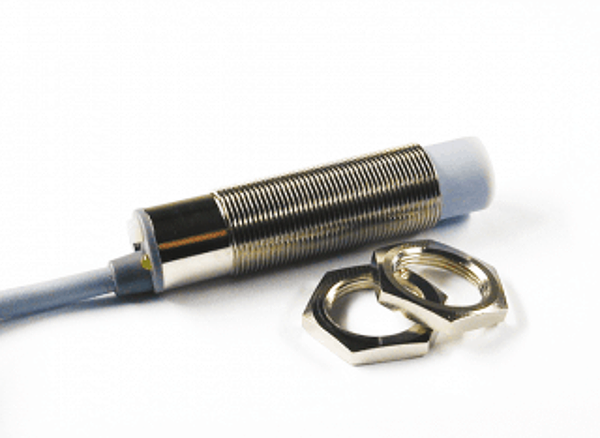

Rechner Sensors 108350

IAS-10-A23-IL20-M18-PTFE/MS-Z02-1

Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"

Beschreibung

Downloads

Technische Daten

Thread / Process connection: M 18 x 1
Housing material active surface: PTFE (FDA 21 CFR 177.1550)
Housing material: Messing
Housing material lid: PA
Electrical version: 3-Leiter DC
Permitted residual ripple max.: 5%
Noload current (Io): Typ. 40 mA
LEDdisplay: Grün / Gelb
Protective circuit: Eingebaut
Degree of protection IEC 60529: IP 67 (mit versigelter Potentiometerschraube)
Norm: EN 60947-5-2
Operating current active surface free: ≤ 4 mA
Operating current active surface covered: ≥ 20 mA
Load resistance (RL): ≤ 400 Ω
Linear range: 3…9 mm
Operating voltage: 10…35 V DC
Permitted ambient temperature min.: 0 °C
Permitted ambient temperature max.: +60 °C
Installation: Nichtbündig
Output function: Analog
Output signal: 4 – 20 mA
Cable length: 2 m
Connection: PUR-Kabel, 3 x 0,34 mm²
CE: JA
RoHS: JA
MTTF: 1218 Jahre
WHG certification: Auf Anfrage

Logistische Daten

ECCN:
Ursprungsland:
EAN:
Gewicht: 0,00 kg
Länge: 0,00 m
Breite: 0,00 m
Höhe: 0,00 m
