Omron
NS050730B
NS5-TQ11B-V2

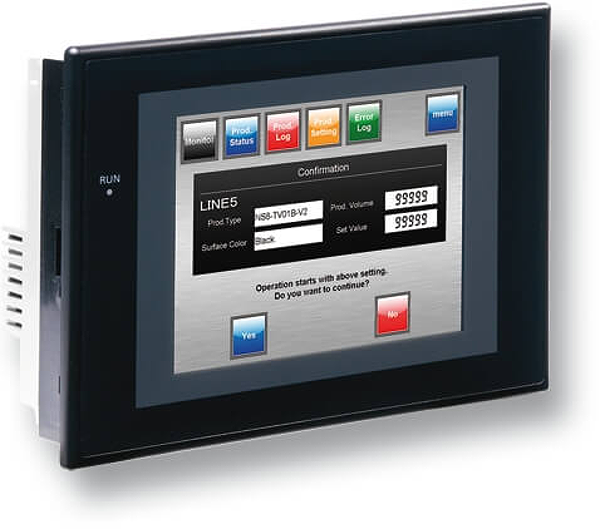

Omron NS050730B
NS5-TQ11B-V2
Bedienterminal. NS-Touch-Screen-Bedienterminal. 5" TFT Graphikanzeige 32000 Farben. Programmspeicher: 60MB. 20x15 Touch-Felder, je 16x16 Pixel. Gehäuse: 195x142x54mm, schwarz. Anzeigengrösse: 320x240 Pixel, 117x88mm, 5,7". Schriftzeichen: 8x8..32x32 Pixel, Unicode. Touch-Switch-Ausführung: drucksensitiv. Ethernet: 10/100BaseT, CF-Karten-Steckplatz. 2xRS 232C Schnittstelle + USB-Slave. Protokolle: Host Link, 1:1/1:N NT-Link, Modbus. Anschluss an: SPS, Barkodels., Tmp.Regl., FU,. Motion Controller, Speicherverknüpfung, Modem. SPS-Typen: OMRON, Mitsubishi, Siemens, Rockwell. Hintergrundbeleuchtung: 75 000Std., max. 4000 Bildschirmseiten. Programmoption: Smart Active Parts. IP65 / IP20, cULus, CE
Beschreibung
Technische Daten
| Frame colour: | Black |
| Screen diagonal: | 5.7 in |
| Number of pixels, horizontal: | 320 |
| Number of pixels, vertical: | 240 |
| Type of display: | TFT |
| Number of colours of the display: | 32768 |
| Number of Ethernet ports: | 1 |
| Number of RS-232 ports: | 2 |
| Number of RS-422 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Number of USB ports: | 1 |
| Degree of protection (IP), front side: | IP65 |
| Width of the front: | 195 mm |
| Height of the front: | 142 mm |
| Width of panel cutout: | 184 mm |
| Height of panel cutout: | 131 mm |
| Built-in depth: | 49 mm |
| Product Weight (unpacked): | 850 g |
Logistische Daten
| ECCN: | |
| Ursprungsland: | JPN |
| EAN: | |
| Gewicht: | 0,00 kg |
| Länge: | 0,00 m |
| Breite: | 0,00 m |
| Höhe: | 0,00 m |
