Produkt
Omron
G3PE2032C
G3PE-545B-3 12-24VDC
Anfrage senden
Urheberrecht Bild: Omron

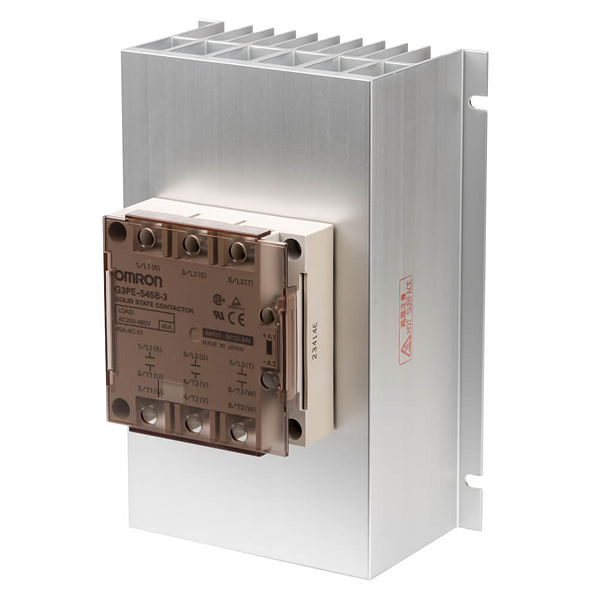

Omron G3PE2032C
G3PE-545B-3 12-24VDC
Halbleiterrelais, 3-polig, Schraubmontage, 45A, 528VAC max.
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Technische Daten
| Application: | ON/OFF control |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Mounting method: | Screw |
| Terminal: | Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 200-480 V |
| Operating voltage range, AC: | 180-528 V |
| Rated operation current Ie at AC-1: | 45 A |
| Permissible I²t value: | 1260 A²s |
| Applicable heater capacity (AC1: resistive load): | 37.4 kW |
| Height: | 190.5 mm |
| Width: | 130.5 mm |
| Depth: | 105 mm |
| Supply voltage DC: | 12-24 V |
| Control current max.: | 10 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 80 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
Logistische Daten
| ECCN: | |
| Ursprungsland: | JPN |
| EAN: | |
| Gewicht: | 0,00 kg |
| Länge: | 0,00 m |
| Breite: | 0,00 m |
| Höhe: | 0,00 m |
