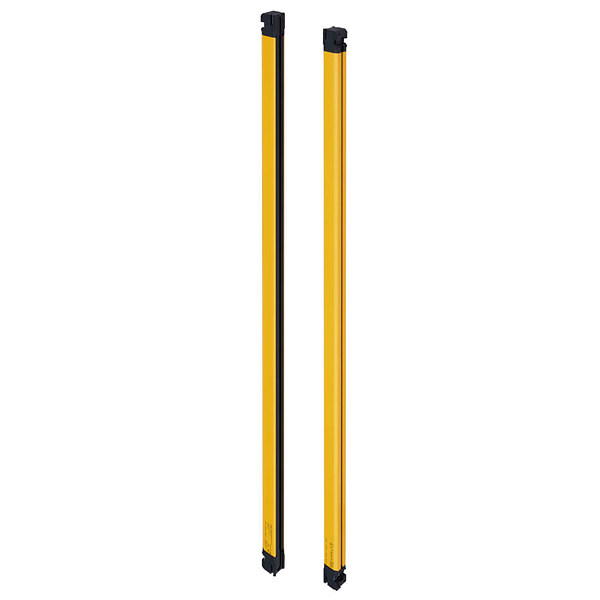

Omron 689767
F3SG-2SRB1280-25
Safety Light Curtain, F3SG-SRB Standard, Type 2, 25 mm resolution, range 0.3 to 20.0 m, height 1280 mm, PNP/NPN
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Technische Daten
| Type of safety acc. IEC 61496-1: | 2 |
| Type of sensor: | Hand detection |
| Detection capability: | 25 mm |
| Safety field height: | 1280 mm |
| Beam gap: | 20 mm |
| Number of beams: | 64 |
| Number of protected semiconductor outputs: | 2 |
| Number of semiconductor outputs with signalling function: | 1 |
| Maximum safety range: | 20 m |
| Minimum operating distance: | 0.3 m |
| Time of reaction: | 13 ms |
| Cascadable: | |
| With muting function: | |
| With beam coding: | |
| Type of switching output of the OSSD: | PNP/NPN |
| Communication port(s): | Other |
| Suitable for safety functions: | |
| Scope of delivery: | Transmitter and receiver |
| Wavelength of the sensor: | 870 nm |
| Type of electric connection: | Connector M12 |
| Supply voltage DC: | 19.2-28.8 V |
| Voltage type: | DC |
| Max. output current at protected output: | 300 mA |
| Degree of protection (IP): | IP65/IP67/IP67G |
| Ambient temperature: | -30-55 °C |
| Overall length: | 1280 mm |
| Height of sensor: | 38 mm |
| Width sensor: | 32 mm |
Logistische Daten
| ECCN: | |
| Ursprungsland: | Japan |
| EAN: | 4549734454643 |
| Gewicht: | 0,00 kg |
| Länge: | 0,00 m |
| Breite: | 0,00 m |
| Höhe: | 0,00 m |
