210244

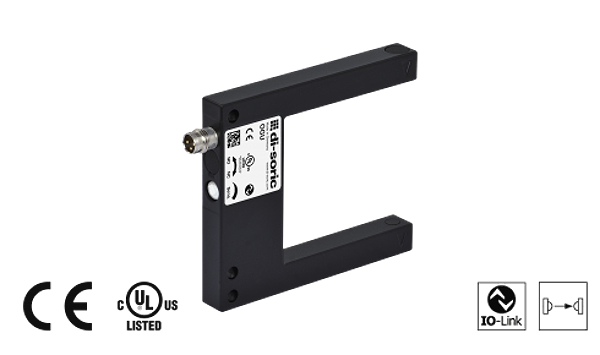

OGU 051 G3-T3
Fork Light Barrier. Gabellichtschranke
Light/dark switching. Hell-/Dunkelschaltung. IO-Link. 4 operating modes as IO-link parameter. 4 Betriebsmodi als IO-Link Parameter. On-/off delay as IO-link parameter. Anzugs-/ und Auschaltverzögerung als IO-Link Parameter. Diagnose via (by means of) IO-link. Diagnose mit IO-Link. Metallgehäuse. Metal casing. Elektronik integriert. Integrated electronic module. Empfindlichkeit einstellbar. Sensitivity adjustable. Hohe Schaltfrequenz. High operating frequency. Bright ring LED. Helle Ring-LED. Hohe Schutzart. High protection class. 5 Jahre Gewährleistung. 5-year warranty
Operating principle: | Optical |
Evaluation: | digital |
Betriebsmodi: | Standard, Hochauflösend, Leistung, Geschwindigkeit |
Size: | 70 x 80 x 10 mm (Dimensions) |
Design: | fork |
Fork opening: | 50 mm |
Schenkellänge innen: | 55 mm |
Sendelicht: | Rot, getaktet |
Betriebsspannung: | 10 ... 30 V DC (Supply Class 2) |
No-load current: | < 30 mA |
Resolution: | Ø 0,3 mm (min. Ø 0,2 mm) |
Sensitivity adjustment: | potentiometer |
Schaltausgang: | Gegentakt, 100 mA, NO/NC, umschaltbar |
Interface: | IO-Link, V1.1, COM2 (38,4kBd), Smart Sensor Profile |
Schaltfrequenz: | 5000 Hz, (< 8000 Hz) |
Reproducibility: | 0,02 mm |
Ambient temperature, operation: | -25 … +60 °C |
Isolationsspannungsfestigkeit: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Die-cast zinc black powder-coated |
Connection: | Connector, M8, 3-poled |
Anschlusskabel: | TK ... |
ECCN: | |
Ursprungsland: | |
EAN: | |
Gewicht: | 0,10 kg |
