Belden 30549
RSEL 5

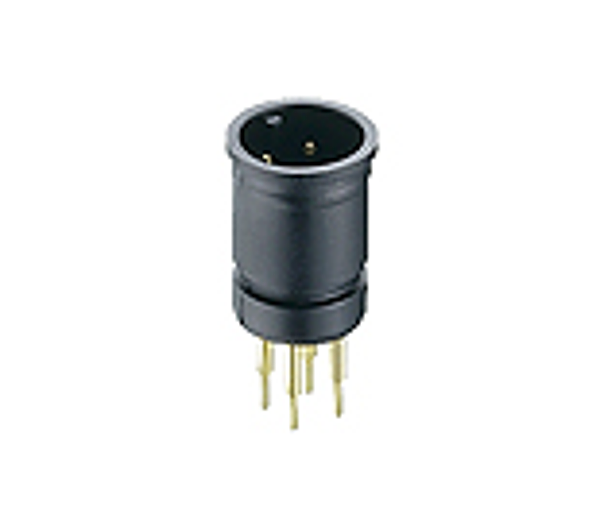

RSEL 5 - M12 Insert Sensor/Actuator Receptacle Connector: Male, insert with O-ring and anti rotation, M12 - mating side, print contacts - connecting side, 5-pin, A-coded, unshielded, black body, 50 V AC / 60 V DC, 4 A
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
M12 Micro Receptacle insert connector, 5-pole male for sensors, solder contacts for printed circuit board mounting. M12 Insert Sensor/Actuator Receptacle Connector: Male, insert with O-ring and anti rotation, M12 - mating side, print contacts - connecting side, 5-pin, A-coded, unshielded, black body, 50 V AC / 60 V DC, 4 A
Downloads
Technische Daten
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | M12 Insert |
| Mating Side:: | M12 |
| Connecting Side:: | Print Contacts |
| Brand:: | Lumberg Automation |
| Connector Type:: | Receptacle |
| Type of Contact / Gender:: | Male |
| Connector Design:: | Insert with O-ring and Anti Rotation |
| Number of Pins:: | 5 |
| Coding:: | A |
| Rated Voltage:: | 60 V |
| Rated Impulse Voltage:: | 1.5 kV |
| Operating Voltage:: | 50 V AC / 60 V DC |
| Rated Current*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Type of Connection:: | PCB |
| Ambient Temperature (Operation)*:: | - 25 °C - + 85 °C |
| Protection Degree / IP Rating**:: | IP65, IP67 |
| Design Standard:: | IEC 61076-2-101 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance:: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category:: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuZn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | PA |
| Contact Bearer Color:: | Black |
| Flammability Class (Contact Bearer):: | UL 94 V-0 |
| Potted:: | no |
| O-Ring Material:: | FKM |
| RoHS Compliant:: | yes |
| Note Derating:: | * Notice derating |
| Protection Degree / IP Rating Note:: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Note:: | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101. |
| 30549: | RSEL 5 |
