Продукт
Werma
23040055
Сделать запрос
Авторское право на изображение: Werma

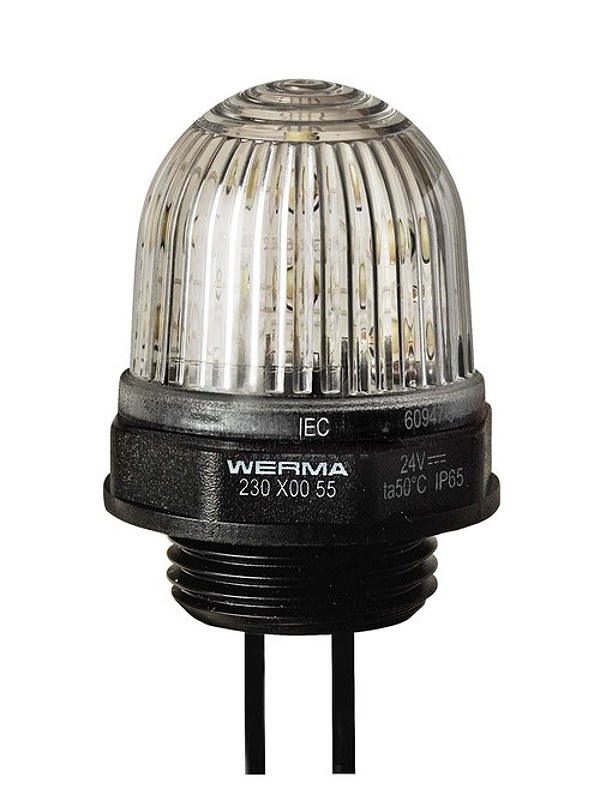

Werma 23040055
LED Perm. Beacon EM 24VDC CL
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
LED Permanent beacon with M 20 thread for applications such as limit and, cable-operated switches. Ideal for installation in limited space due to short thread. Excellent visibility from the side
Технические характеристики
| Height: | 154 mm |
| Diameter: | 29 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Cable |
| Cable length: | 115 mm |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 17 g |
| Product weight: | 12 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 45 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | White |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
