Продукт
Werma
14015050
Сделать запрос
Авторское право на изображение: Werma

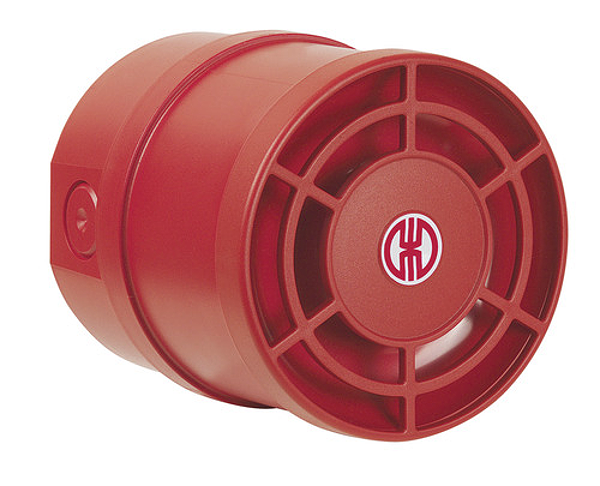

Werma 14015050
Multi-t.sounder WM 32 tne 9-28VDC RD
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
32 tones for a diverse range of applications. Adjustable sound output to 112 dB. Direct external setting of two tones possible with low voltage version
Технические характеристики
| Height: | 110 mm |
| Diameter: | 100 mm |
| Materials: | PC/ABS |
| Housing colour: | Red |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Through hole |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -40°C |
| Working temperature maximum: | +70°C |
| Weight with packaging: | 310 g |
| Product weight: | 272 g |
| Operating voltage: | 9–28V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 0% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 120 mA |
| Rated inrush current: | 1.400 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Volume/dB(max) at 1m distance: | 115,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 32 tone |
| Acoustic service life: | 5,000 h minimum |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
