Werma
11848315
Сделать запрос
Авторское право на изображение: Werma

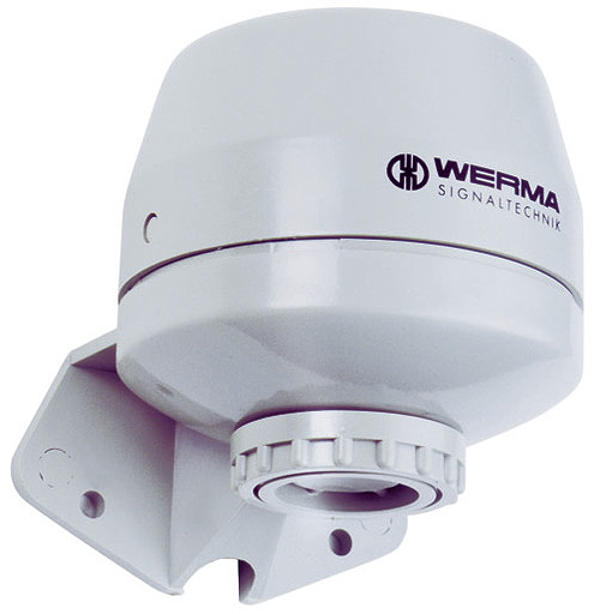

Werma 11848315
Electr. Buzzer WM Contin. tone 24VAC/DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Integrated bracket for simple wall mounting. With continuous tone
Технические характеристики
| Height: | 80 mm |
| Diameter: | 70 mm |
| Materials: | PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP33 |
| Connection: | Flat plug |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | 0°C |
| Working temperature maximum: | +60°C |
| Weight with packaging: | 104 g |
| Product weight: | 78 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 20 mA |
| Rated inrush current: | <500mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 2 |
| Volume/dB(max) at 1m distance: | 90,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 2400 Hz |
| Acoustic service life: | 5,000 h minimum |
