Rechner Sensors
KI0144

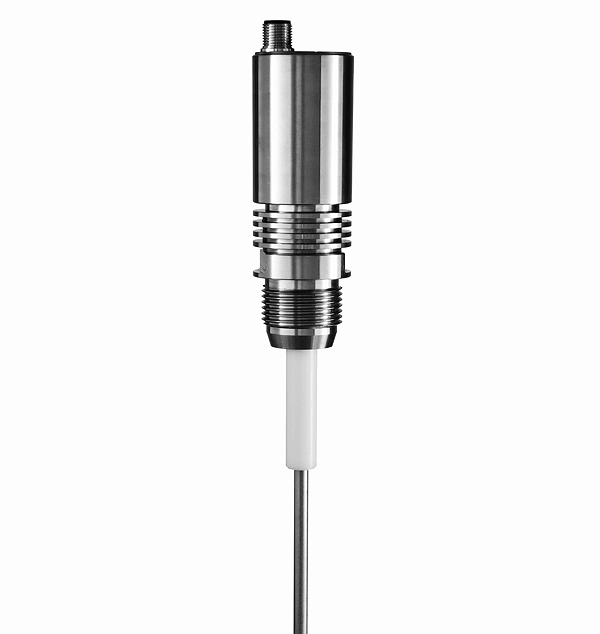

Rechner Sensors KI0144
KFI-1-1000-950-VAc/PTFE-D13-TP20-G1-IL4-ET-Y10
Описание
Capacitive Level Probe. Evaluation Electronics integrated!. Capacitive level probes for level control of liquids or bulk material with a dielectric constant (DC) εr between 2 and 80. The i-Level Probe with integrated evaluation electronics for analogue measurement with 2 additional switching points is well known and accepted. Now with robust metal rod. An additional new product of the i-Level Series has been designed with a stainless steel measuring electrode. The advantages for you are:. Analogue current output of 4…20 mA. Sensitivity adjustment is made by EasyTeach function (ET = EasyTeach by Wire and EasyTeach by Magnet). Teach-Magnet supplied with the probe. Reliable level control. Probe length can be defined when ordering. Maximum probe length is 2000 mm. Process connection G1“. High permitted ambient temperature (TP20 = 160°C and TP50 = 200°C), i-level
Загрузки
Технические характеристики
| Thread / Process connection: | G 1" |
| Housing material active surface: | Edelstahl Nr. 1.4404 |
| Housing material: | Edelstahl Nr. 1.4404, PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Probe length: | 1000 mm |
| Active zone: | 950 mm |
| Electrical version: | 3-Polig DC |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 40 mA |
| LEDdisplay: | Grün |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 66 |
| Norm: | EN 60947-5-2 |
| Load resistance (RL): | ≤ 200 Ω |
| Operating voltage: | 15…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Permitted ambient temperature: | -25…+160 °C |
| Temperature barrier: | TB20 |
| Output function: | Analog |
| Output signal: | 4 – 20 mA |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 737,46 Jahre |
| WHG certification: | Auf Anfrage |
