Rechner Sensors
KFK009
Сделать запрос
Авторское право на изображение: Rechner Sensors

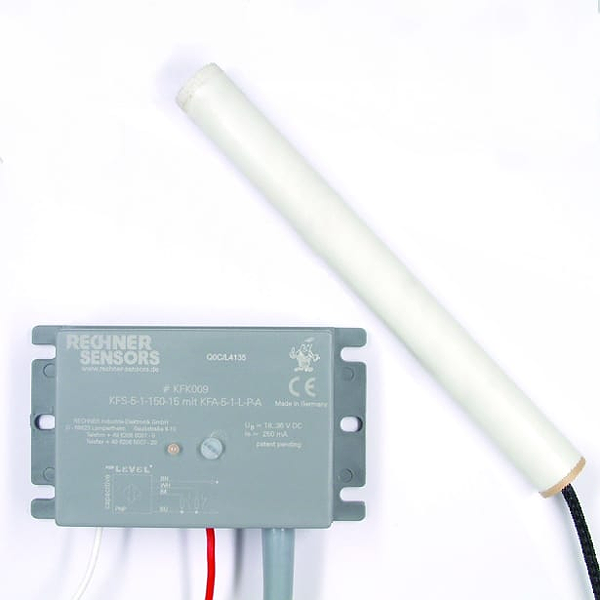

Rechner Sensors KFK009
KFK-51-15-150-15-GFK-D16-X0E-L-P-A-Z0E
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Capacitive Level Probe + Evaluation Unit. Series PerLevel. PNP output. Capacitive level probe with 1 switching point. Sensor and evaluation unit fix connected together. Cable length between sensor and evaluation unit 0,6 m. Particularly suitable for level control of strong adhesive products, like hot melt, glue etc.
Загрузки
Технические характеристики
| Thread / Process connection: | Ø 16 mm |
| Housing material active surface: | GFK (Sonde) |
| Housing material: | PA (Auswerter) |
| Housing material lid: | PEEK (FDA 21 CFR 177.2415) (Sonde) |
| Probe length: | 150 mm |
| Length of the reference area (R)/ Electrode length: | 15 mm |
| Position of the switching points: | 15 mm |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 25% |
| Noload current (Io): | Typ. 75 mA |
| Frequency of operating cycles max.: | 4 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (Sonde) IP 54 (Auswerter) |
| Norm: | EN 60947-5-2 |
| Operating voltage: | 18…36 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +55 °C |
| Permitted ambient temperature: | -25…+200 °C |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 184,27 Jahre |
| WHG certification: | Auf Anfrage |
