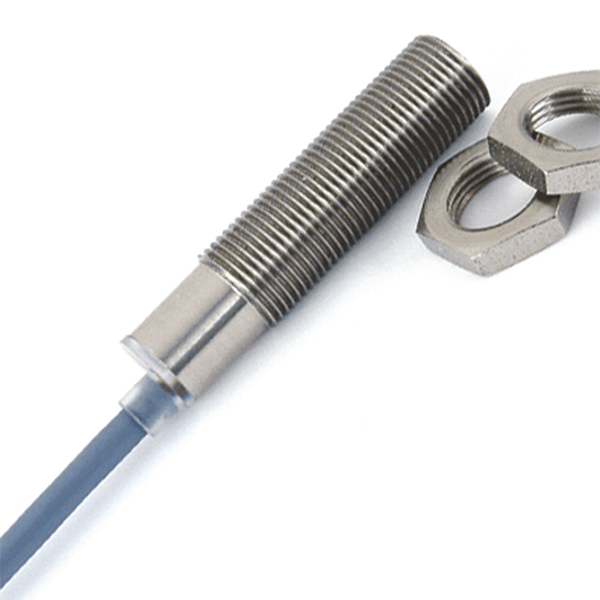

Rechner Sensors IA0151
IAS-10-A12-S-StEx, ATEX, 15 m
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Inductive Sensors. Series 10 – PNP – StEx – ATEX. Housing M 12 x 1. For use in areas with the risk of dust explosion, zone 20. For use in areas with the risk of gas explosion, zone 1. Sensing distance Sn 2 mm. DMT 01 ATEX E 157 IECEx BVS 07.0015. II 2 G Ex mb IIC T4 Gb Ex mb IIC T4 Gb. II 1/2 D Ex ta/tb IIIC T101°C Da/Db Ex ta/tb IIIC T101°C Da/Db
Загрузки
Технические характеристики
| Thread / Process connection: | M 12 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 3-Leiter DC |
| Operating current (Ie): | 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 2 kHz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 2 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +90 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 5 m |
| Connection: | PVC-Kabel, 4 x 0,14 mm² GNGB |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking dust: | Ex II 1/2 D Ex ta/tb Ex IIIC T101°C Da/Db |
| ATEX product marking gas: | Ex II 2G Ex mb Ex IIC T4 Gb |
| Certified Zones ATEX: | 2G1/2D |
| IECEX product marking dust: | Ex ta/tb IIIC T101°C Da/Db |
| IECEX product marking gas: | Ex mb IIC T4 Gb |
| MTTF: | 1218 Jahre |
| WHG certification: | Auf Anfrage |
