Leuze electronic
50137332
PRKL 53/6.22,5000
Сделать запрос
Авторское право на изображение: Leuze electronic
Leuze electronic 50137332
PRKL 53/6.22,5000

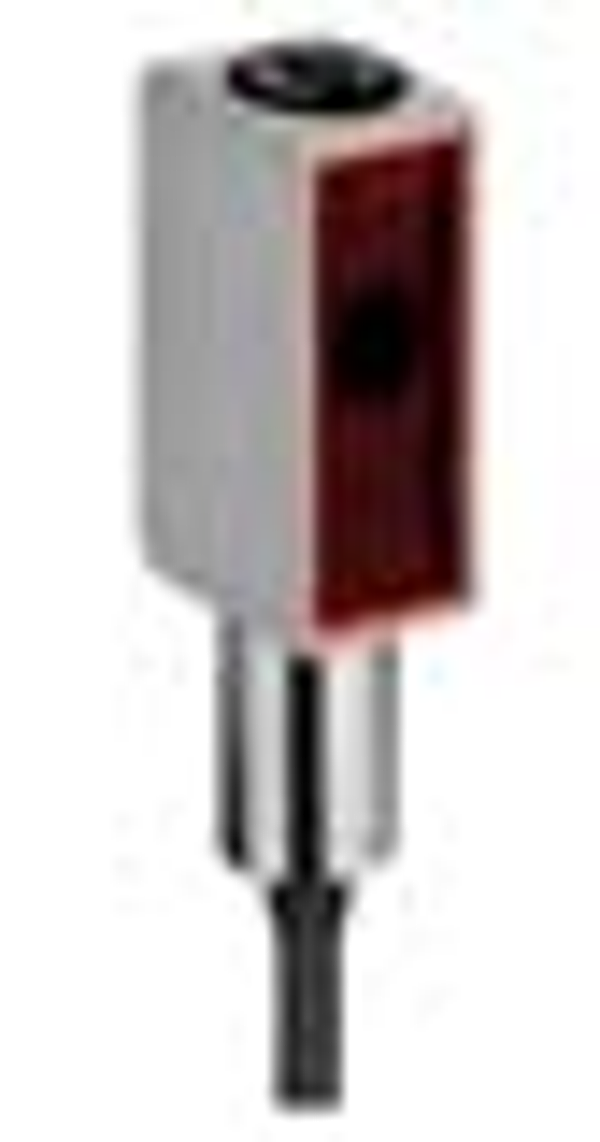

PRKL 53/6.22,5000 - Polarized retro-reflective photoelectric sensor
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 53 |
| Operating principle: | Reflection principle |
| Special version: | HYGIENE design, Autocollimation, Teach input |
| Operating range: | 0 ... 2 m |
| Operating range limit: | 0 ... 3 m |
| Light source: | Laser, Red |
| Laser class: | 1, IEC/EN 60825-1:2007 |
| Light spot size [at sensor distance]: | 3 mm |
| Protective circuit: | Short circuit protected, Polarity reversal protection |
| Supply voltage UB: | 10 ... 30 V, DC |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 18 mA |
| Number of teach inputs: | 1 Piece(s) |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, Push-pull |
| Switching principle: | Light switching (PNP)/dark switching (NPN) |
| Switching frequency: | 2,000 Hz |
| Response time: | 0.25 ms |
| Function: | Voltage supply, Signal OUT |
| Type of connection: | Cable |
| Cable length: | 5,000 mm |
| Number of conductors: | 4 -wire |
| Dimension (W x H x L): | 14 mm x 35.6 mm x 20.3 mm |
| Housing material: | Stainless steel, AISI 316L |
| Lens cover material: | Plastic with scratch-resistant Indium protective coating |
| Type of fastening: | Housing fit |
| Compatibility of materials: | ECOLAB, CleanProof+ |
| Operational controls: | Teach button |
| Ambient temperature, operation: | -30 ... 55 °C |
| Degree of protection: | IP 67, IP 69K |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270902 |
| eCl@ss 9.0: | 27270902 |
| ETIM 5.0: | EC002717 |
| ETIM 6.0: | EC002717 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,22 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
