Leuze electronic 50137284
PRK15.D1/PX-200-M12

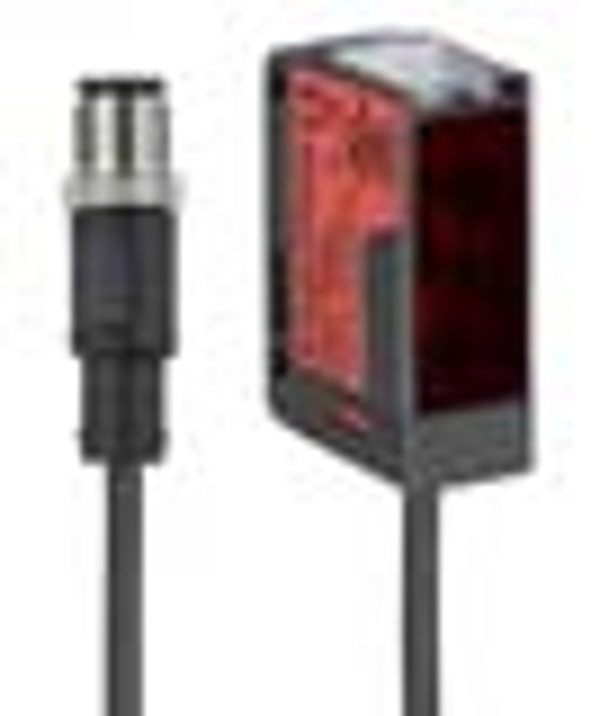

PRK15.D1/PX-200-M12 - Polarized retro-reflective photoelectric sensor
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | 15 |
| Operating principle: | Reflection principle |
| Application: | Detection of stretch-wrapped objects |
| Operating range: | 0 ... 6 m, With reflector TK(S) 100x100 |
| Operating range limit: | 0 ... 8 m, With reflector TK(S) 100x100 |
| Light source: | LED, Red |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 20 mA |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Dark switching |
| Switching frequency: | 500 Hz |
| Response time: | 1 ms |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Cable with connector |
| Cable length: | 200 mm |
| Thread size: | M12 |
| Material: | Plastic |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 15 mm x 42.7 mm x 30 mm |
| Housing material: | Plastic, ABS |
| Lens cover material: | Plastic |
| Net weight: | 22 g |
| Type of fastening: | Through-hole mounting, Via optional mounting device |
| Operational controls: | 270° potentiometer |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270902 |
| eCl@ss 9.0: | 27270902 |
| ETIM 5.0: | EC002717 |
| ETIM 6.0: | EC002717 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | China |
| EAN: | |
| Вес: | 0,04 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
