Продукт
Leuze electronic
50104789
MA 8-02
Сделать запрос
Авторское право на изображение: Leuze electronic

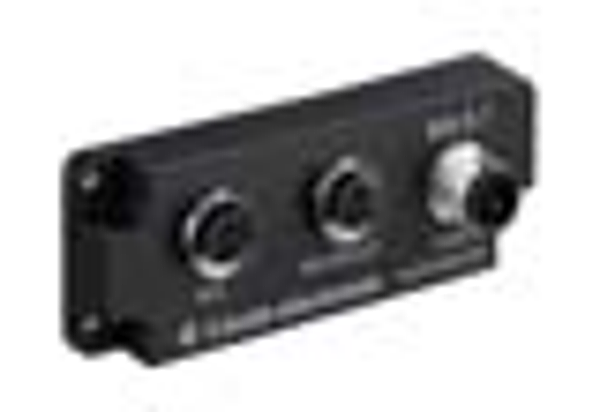

Leuze electronic 50104789
MA 8-02
MA 8-02 - Modular connection unit
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | MA 8 |
| Suitable for: | BCL 8 series bar code readers, BPS 8 series bar code positioning system |
| Supply voltage UB: | 10 ... 30 V, DC |
| Current consumption, max.: | 50 mA |
| Type: | RS 485 |
| Termination: | 47kΩ / 150Ω / 47 kΩ |
| Number of connections: | 3 Piece(s) |
| Function: | Connection to device |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Function: | Signal IN, Signal OUT |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| Material: | Metal |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Function: | Voltage supply, Connection with PLC |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| Material: | Metal |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Dimension (W x H x L): | 32 mm x 25 mm x 86 mm |
| Housing material: | Plastic, PA 66 |
| Net weight: | 70 g |
| Ambient temperature, operation: | 0 ... 50 °C |
| Ambient temperature, storage: | -30 ... 80 °C |
| Relative humidity (non-condensing): | 0 ... 90 % |
| Degree of protection: | IP 67 |
| Certifications: | c UL US |
| Customs tariff number: | 85369010 |
| eCl@ss 8.0: | 27069190 |
| eCl@ss 9.0: | 27069190 |
| ETIM 5.0: | EC001578 |
| ETIM 6.0: | EC001578 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,09 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
