Продукт
Escha
8055443
IE-WWASSX8.066-10/S3500
Сделать запрос
Авторское право на изображение: Escha

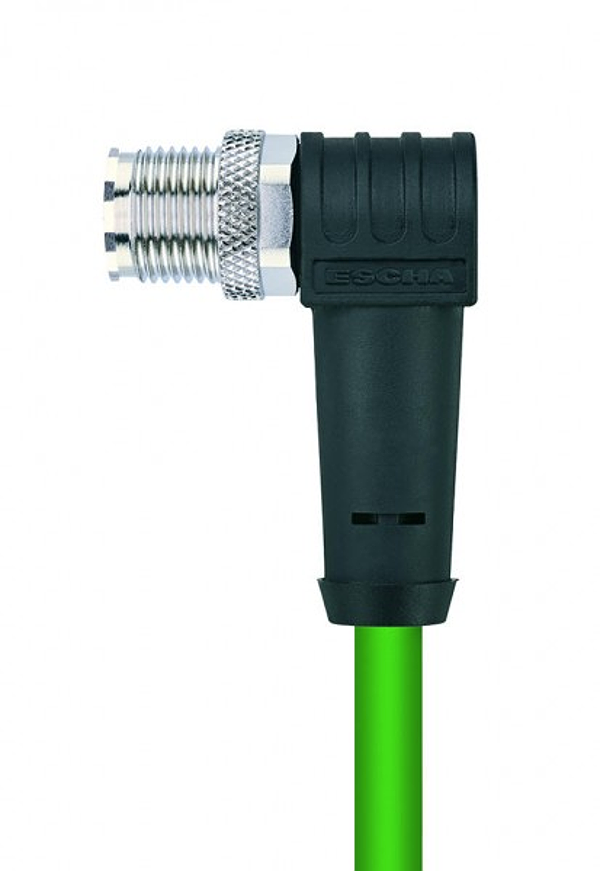

Escha 8055443
IE-WWASSX8.066-10/S3500
M12 male, angled, Industrial Ethernet, 10 GBit/s, 8 poles, X-coded, shielded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Shielded PUR-cable for industrial applications. The cable meets the UL-Style 20963 and the Cat7 (electrical properties according to EN50288-4-2) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 6,40 mm |
| Connector: | male, angled, M12 |
| Number of pins: | 8 |
| Pin assignment: | 1 WHOG, 2 OG; 3 WHGN, 4 GN; 5 WHBN, 6 BN; 7 WHBU, 8 BU |
| Coding: | X |
| Wire colors: | WH/OG ; WH/GN ; WH/BN ; WH/BU |
| Conductor structure: | 7 x 0.16 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (repeated): | -20°C...+60°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Rated voltage cable: | 30 V UL rating |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, UV resistant, hydrolysis proof, halogen free, oil resistant, high flexibility, no corrosive gases, microbes resistant, no fire propargation |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 2 |
| Shielding: | with shielding |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
