Escha 8052708
AL-ZKP4-2/P00

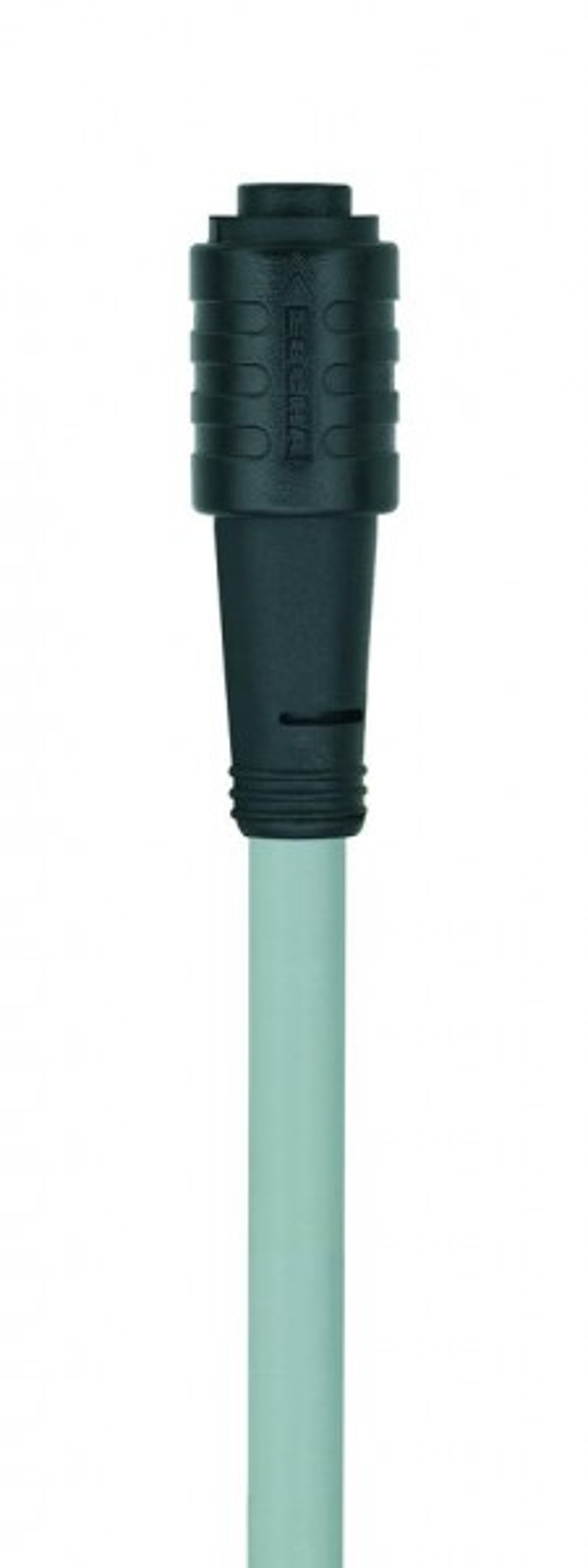

Ø8mm snap female, straight, sensor-/actuator cable, 4 poles, with locking mechanism
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Загрузки
Технические характеристики
| Connector: | female, straight, Ø8mm snap, with locking mechanism |
| Number of pins: | 4 |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 4 x 0.25 mm² |
| Resistance (mΩ): | 5 |
| Wire colors: | BN, WH, BU, BK |
| Insulation resistance (Ω): | ≥10 8 |
| Bending radius (fixed): | 5 x Ø-cable |
| Contact material: | Metal, CuSn, gold-plated |
| Temperature range (repeated): | 0°C...+80°C |
| Contact-carrier material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3/2 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
