Продукт
Escha
8051110
AL-WWAS12-2/P00
Сделать запрос
Авторское право на изображение: Escha

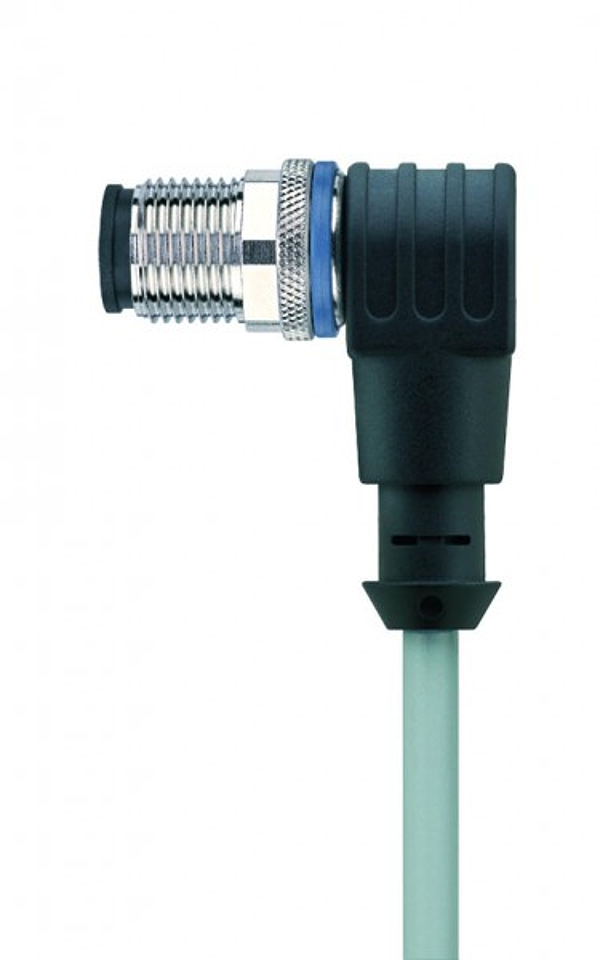

Escha 8051110
AL-WWAS12-2/P00
M12 male, angled, sensor-/actuator cable, 12 poles, A-coded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 6,10 mm |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Coding: | A |
| Rated voltage: | 30V |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 1.5 |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -25°C...+80°C |
| Temperature range (repeated): | 0°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Tschechische Republik |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
