Продукт
Escha
8047835
VC21-230.0-5/P01
Сделать запрос

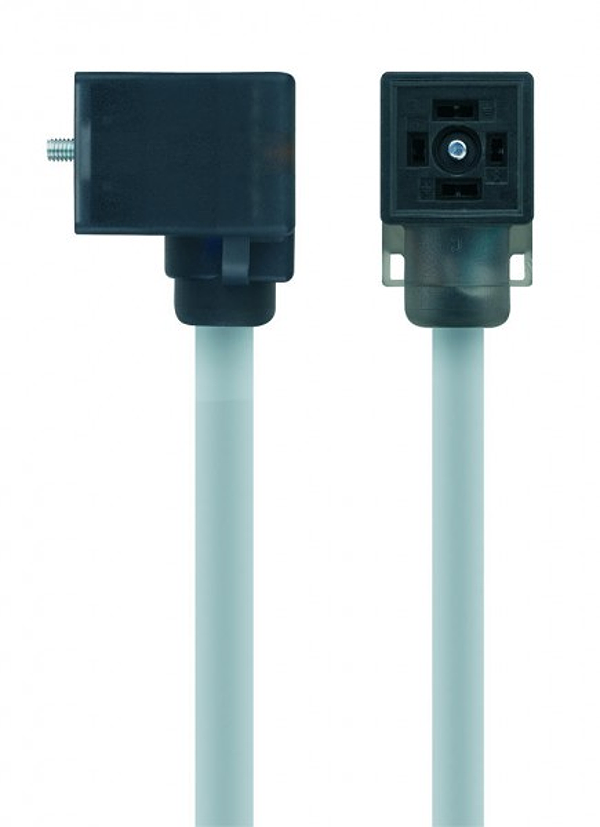

Авторское право на изображение: Escha
Escha 8047835
VC21-230.0-5/P01
Valve-connector, housing style C, 2+PE, sensor-/actuator cable
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 6,10 +/- 0,2 mm |
| Protection circuit: | without |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 3 x 0.75 mm² |
| Pin assignment: | 1 BN, 2 BU, PE: GNYE |
| Wire colors: | BN, BU, GNYE |
| Current load (at 40°C): | 10 |
| Bending radius (fixed): | 5 x Ø-cable |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, silver-plated |
| Grip body material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,30 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
