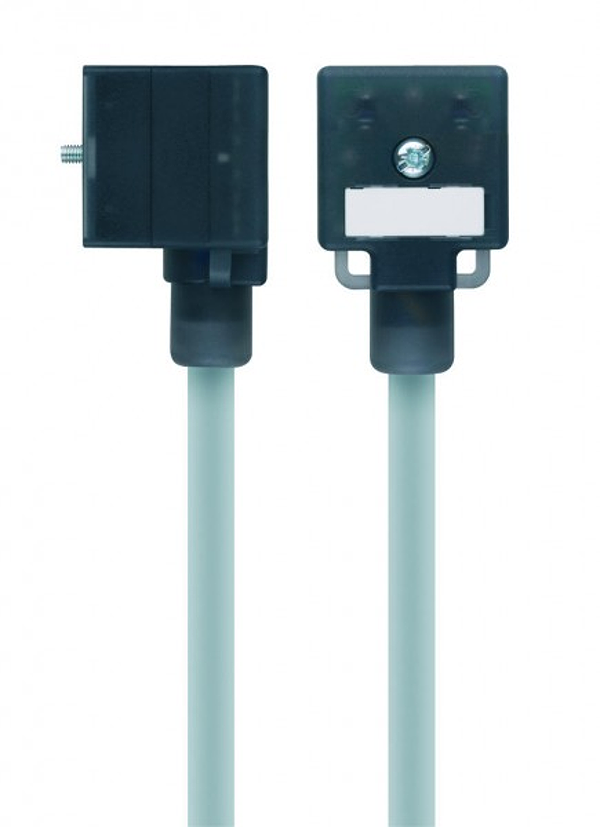

Escha 8047823
VA21-230.0-5/P01
Valve-connector, housing style A, 2+PE, sensor-/actuator cable
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.
Загрузки
Технические характеристики
| Housing style: | A |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 3 x 0.75 mm² |
| Pin assignment: | 1 BN, 2 BU, 3 n.c., PE: GNYE |
| Rated voltage: | 230V AC/DC |
| Current load (at 40°C): | 10 |
| Bending radius (fixed): | 5 x Ø-cable |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, silver-plated |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, PA, BK |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
