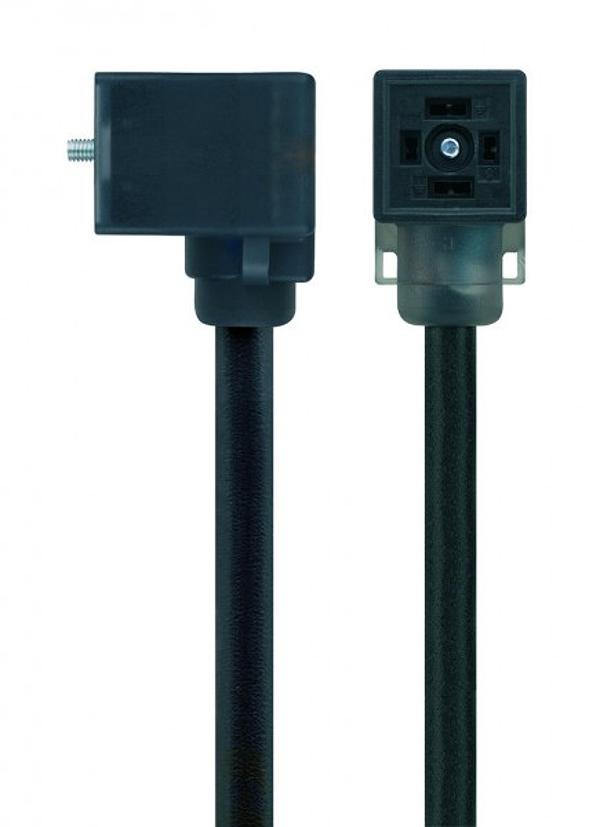

Авторское право на изображение: Escha
Escha 8047820
VCI21-230.0-5/S370
Valve-connector, housing style CI, 2+PE, sensor-/actuator cable
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Загрузки
Технические характеристики
| Housing style: | CI |
| Protection circuit: | without |
| Connector: | female, angled, Valve CI |
| Wire cross-section: | 3 x 0.75 mm² |
| Pin assignment: | 1 BN, 2 BU, PE: GNYE |
| Rated voltage: | 230V AC/DC |
| Current load (at 40°C): | 10 |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (fixed): | -40°C...+90°C |
| Temperature range (repeated): | -30°C...+90°C |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, PA, BK |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,24 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
