Escha 8047809
VB21-230.0-5/S370

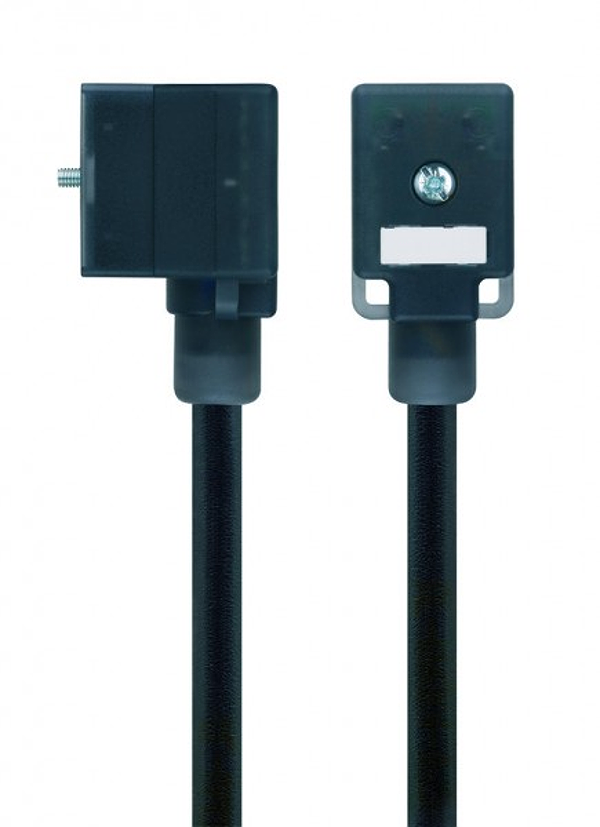

Valve-connector, housing style B, 2+PE, sensor-/actuator cable
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 5,7 +/- 0,2 mm |
| Protection circuit: | without |
| Jacket color: | BK, similar RAL9005 |
| Wire cross-section: | 3 x 0.75 mm² |
| Pin assignment: | 1 BN, 2 BU, PE: GNYE |
| Wire colors: | BN, BU, GNYE |
| Current load (at 40°C): | 10 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (repeated): | -30°C...+90°C |
| Grip body material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
