Продукт
Escha
8047525
CD-WAS5.022-10/S2800
Сделать запрос

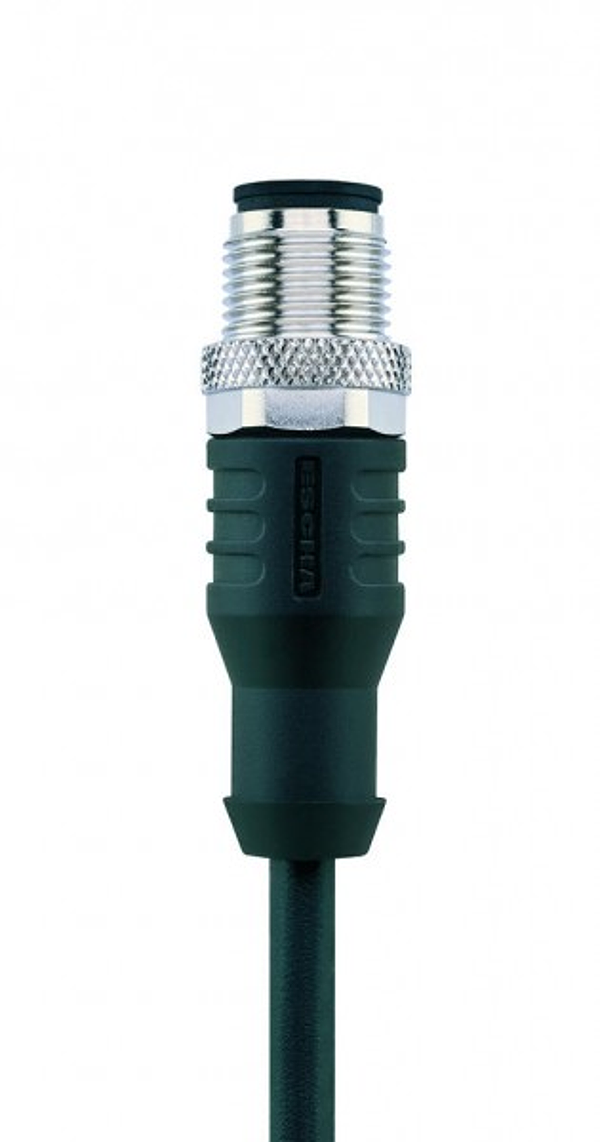

Авторское право на изображение: Escha
Escha 8047525
CD-WAS5.022-10/S2800
M12 male, straight, CANopen/DeviceNet, 5 poles, A-coded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
UL- and CSA-listed shielded PUR-cable for automation technology. As a data transmitter, it supports CANopen as well as DeviceNetbased fieldbuses. High transmission rates enable transport of real-time data. Due to the constructive setup and the materials used, increased mechanical stresses (abrasion, bending, vibrations etc.) do not pose any restrictions to the application.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 6,90 mm |
| Number of pins: | 5 |
| Pin assignment: | 1 (GND), 2 RD (+), 3 BK (-), 4 WH (CAN_H), 5 BU (CAN_L) |
| Wire cross-section: | 2 x 0.25 mm²+ 2 x 0.34 mm² |
| Rated voltage: | 60V |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 4 |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -50°C...+80°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, halogen free, oil resistant, microbes resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,10 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
