Продукт
Escha
8047521
CD-WWAK5.022-5/S2800
Сделать запрос
Авторское право на изображение: Escha

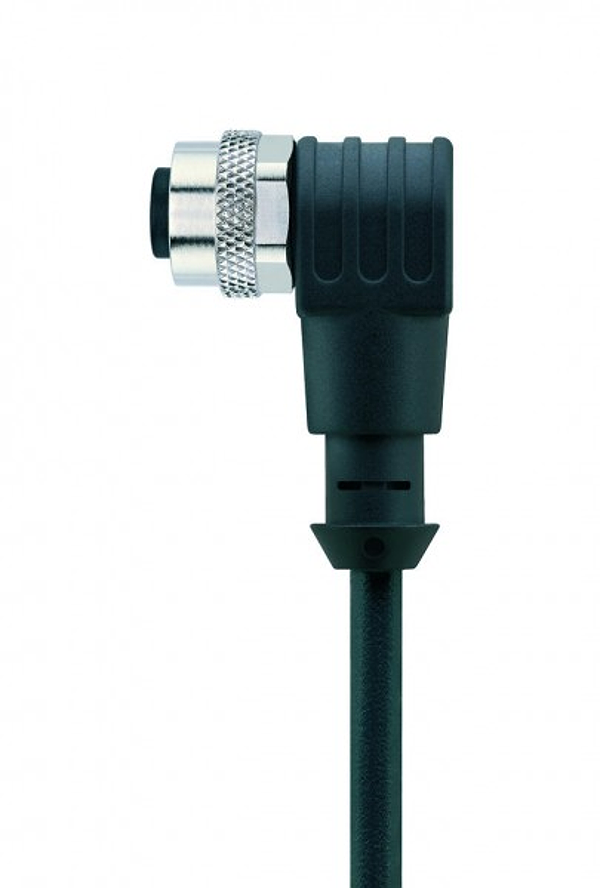

Escha 8047521
CD-WWAK5.022-5/S2800
M12 female, angled, CANopen/DeviceNet, 5 poles, A-coded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
UL- and CSA-listed shielded PUR-cable for automation technology. As a data transmitter, it supports CANopen as well as DeviceNetbased fieldbuses. High transmission rates enable transport of real-time data. Due to the constructive setup and the materials used, increased mechanical stresses (abrasion, bending, vibrations etc.) do not pose any restrictions to the application.
Загрузки
Технические характеристики
| Connector: | female, angled, M12 |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Coding: | A |
| Rated voltage: | 60V |
| Wire colors: | WH, BU, RD, BK |
| Conductor structure: | 19 x 0.13mm (0.25mm²), 19 x 0.15mm (0.34mm²) |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (fixed): | -50°C...+80°C |
| Temperature range (repeated): | -25°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, TPU, BK |
| Shielding: | Yes, with stranded wire |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
