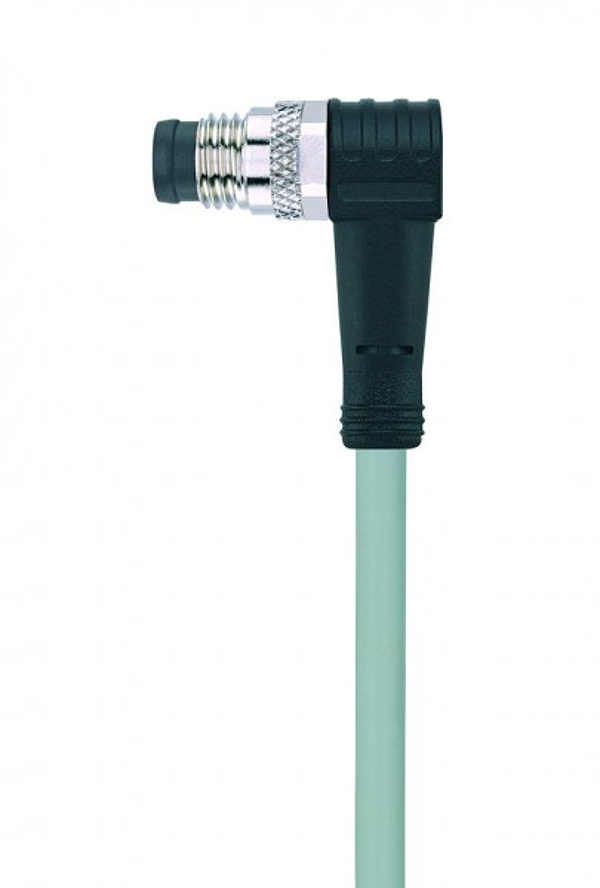

Escha 8047050
AL-SWSP4.5-2/P00
M8 male, angled, sensor-/actuator cable, 5 poles
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Загрузки
Технические характеристики
| Connector: | male, angled, M8 |
| Material: | PVC |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GY |
| Rated voltage: | 30V |
| Wire insulation material: | PVC |
| Wire colors: | BN, WH, BU, BK, GY |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
