Продукт
Escha
8047048
AL-SSPS4.5-2/P00
Сделать запрос
Авторское право на изображение: Escha

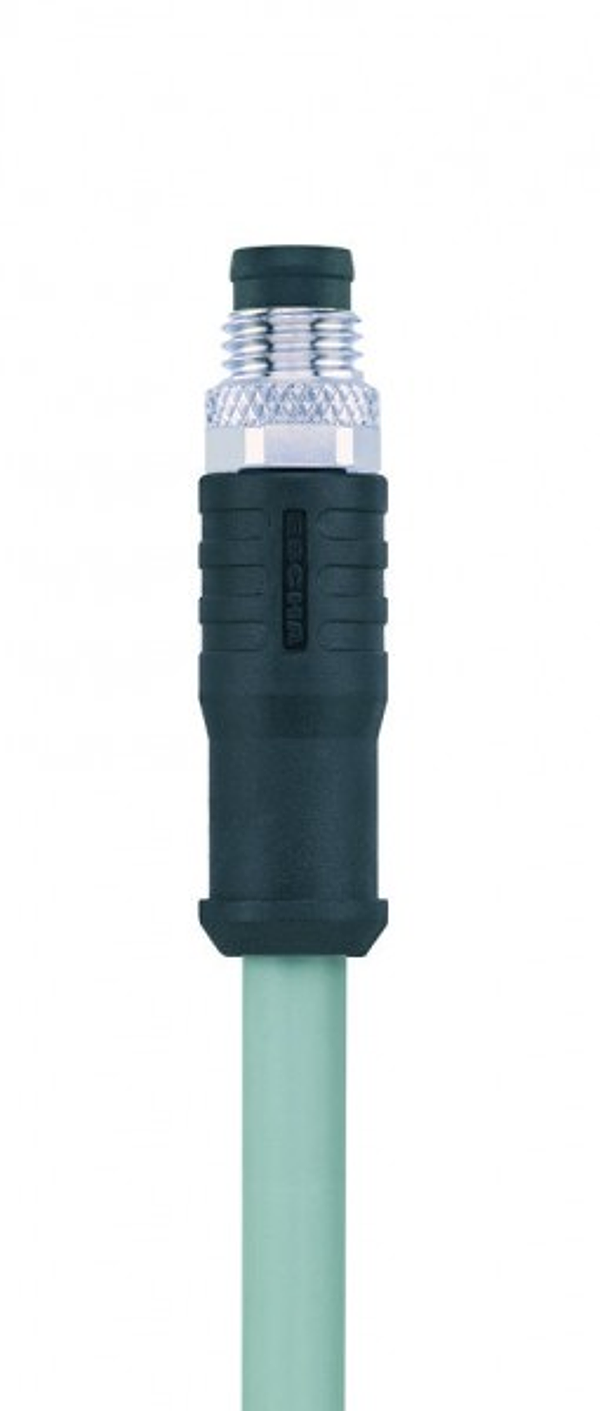

Escha 8047048
AL-SSPS4.5-2/P00
M8 male, straight, sensor-/actuator cable, 5 poles, shielded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. Very good EMC-features with shielded versions.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 5,30 mm |
| Number of pins: | 5 |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 5 x 0.25 mm² |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 3 |
| Conductor structure: | 14 x 0.15 mm |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | ≤300 V |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
