Продукт
Escha
8045894
4I/OM12-5P3C-2/S370
Сделать запрос
Авторское право на изображение: Escha

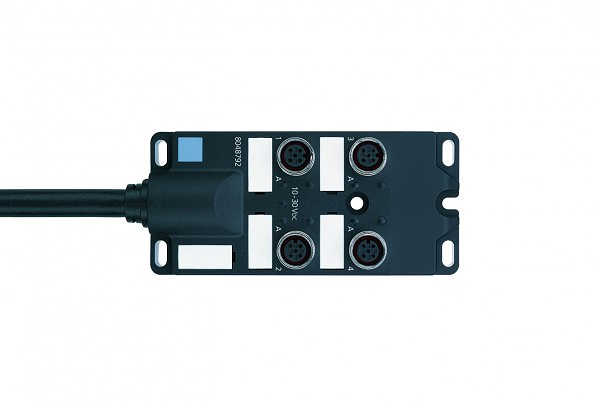

Escha 8045894
4I/OM12-5P3C-2/S370
I/O-junctions, M12, passive, 4 ports, 4+PE poles, fixed cable connection
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 8,2 +/- 0,3 mm |
| Number of I/O-slots: | 4 |
| Jacket color: | BK, similar RAL9005 |
| Circuit logic: | pnp |
| Wire insulation material: | PP |
| Total current load: | 12 |
| Bending radius (fixed): | 5 x Ø-cable |
| Number of pins: | 4+PE |
| Coding: | A |
| Halogen-free: | Yes |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 2 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Housing material: | Plastic, PA, BK |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Connecting type: | Fixed cable connection |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
