Продукт
Escha
8042850
AL-SWKP4.5-1-AL-SWSP4.5/P00
Сделать запрос
Авторское право на изображение: Escha

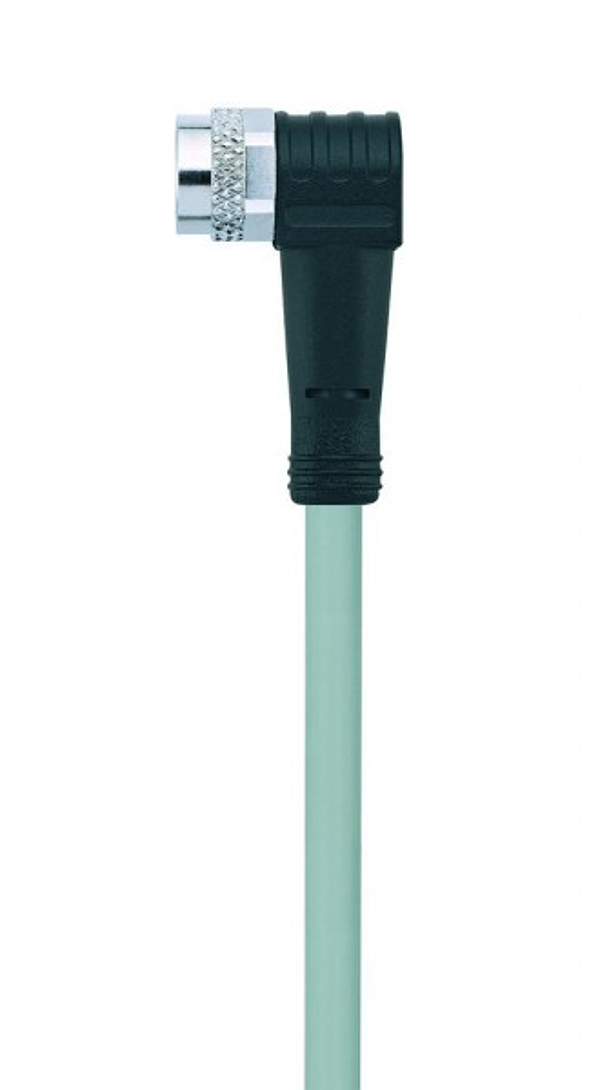

Escha 8042850
AL-SWKP4.5-1-AL-SWSP4.5/P00
M8 female, angled, M8 male, angled, sensor-/actuator cable, 5 poles
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Загрузки
Технические характеристики
| Connector: | female, angled, M8 |
| Material: | PVC |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GY |
| Wire cross-section: | 5 x 0.25 mm² |
| Current load (at 40°C): | 3 A |
| Wire colors: | BN, WH, BU, BK, GY |
| Resistance (mΩ) (mΩ): | 5 |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -25°C...+80°C |
| Contact-carrier material: | Plastic, TPU, BK |
| Grip body material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 61076-2-104 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
