Escha 8042848
AL-SKP4.5-5-AL-SSP4.5/P00

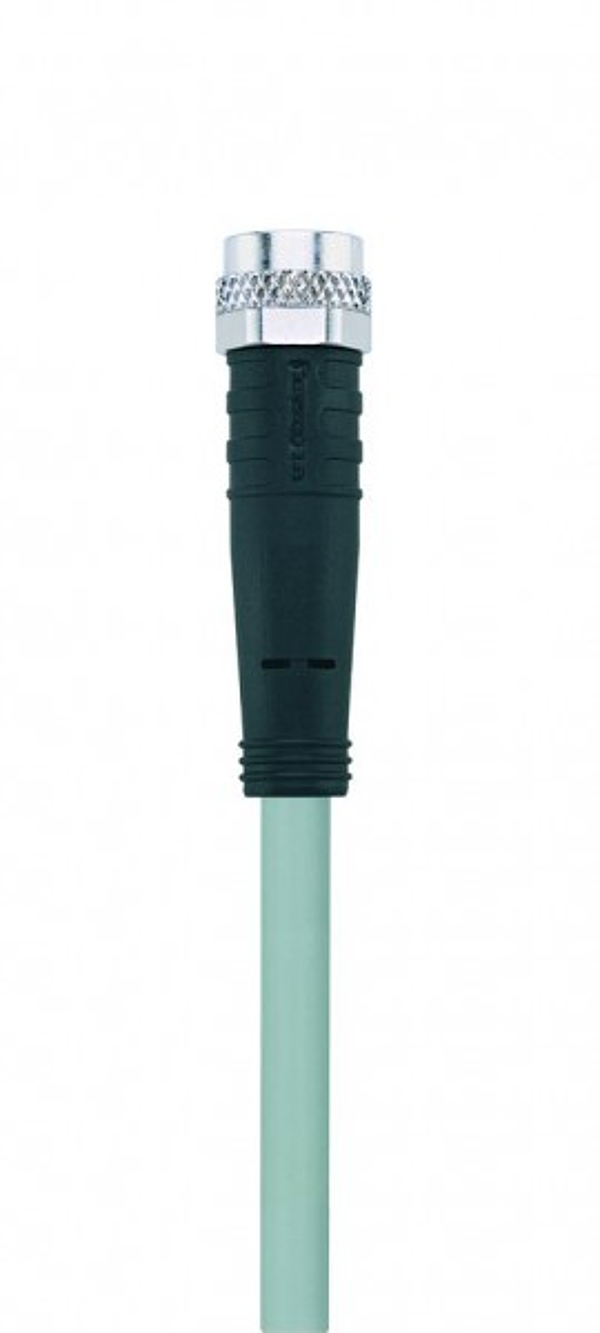

M8 female, straight, M8 male, straight, sensor-/actuator cable, 5 poles
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 4,50 mm |
| Number of pins: | 5 |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 5 x 0.25 mm² |
| Current load (at 40°C): | 3 A |
| Insulation resistance (Ω): | ≥10 8 |
| Resistance (mΩ) (mΩ): | 5 |
| Bending radius (fixed): | 5 x Ø-cable |
| Contact material: | Metal, CuSn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Sealing (female) material: | IEC 61076-2-104 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
