Продукт
Di-soric
207147
BE-R70-F1-K-POL
Сделать запрос
Авторское право на изображение: Di-soric
Di-soric 207147
BE-R70-F1-K-POL

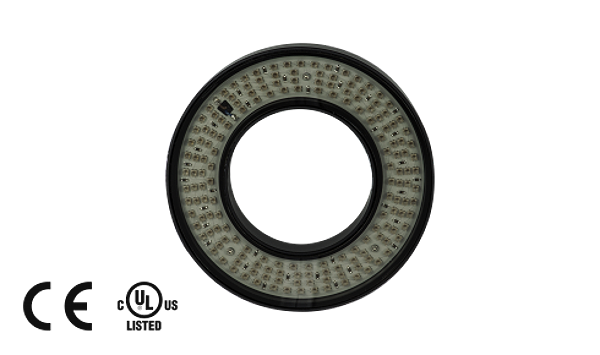

Ringlight for flash controller
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
High excess current factor. Pulsed mode for inspection of fast moving objects. Extremely powerful light for high depth of field. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class IP 67. Robust metal casing
Загрузки
Технические характеристики
| Pulse power consumption (max): | 96,0 W |
| Pulse overload factor: | 8 |
| Pulse current capacity: | 6000 mA |
| Size: | Ø 70 mm, Ø 130 mm (Diameter) 20 mm (Height) |
| Design: | Ringlight |
| Characteristics: | Flashable by means of flash controller |
| Light colour: | Red, polarised, 633 nm |
| Emission angle FWHM: | 30° |
| Illumination intensity: | 2.9 klx (0.2 m / 100%) 11.7 klx (0.2 m / 400%) 22.8 klx (0.2 m / 800%) 1.1 klx (0.5 m / 100%) 4.1 klx (0.5 m / 400%) 8.3 klx (0.5 m / 800%) |
| Service voltage: | No constant voltage! |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Ambient temperature, operation: | 0 … +40 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) PMMA, polarized (Protection optics) |
| Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,45 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
