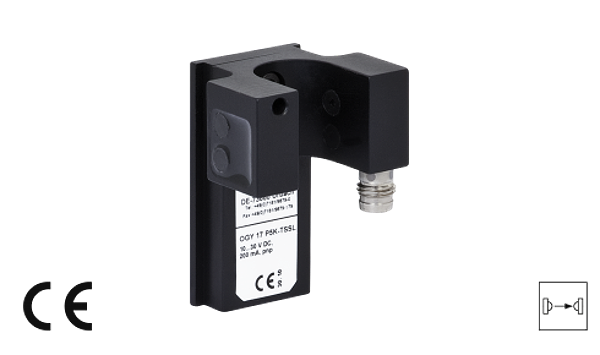

Di-soric 201415
OGY 17 P5K-TSSL
Fork Light Barrier for Flow Meter Control
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Flow detection for glass plungers with ball inside. Permanent breaker signal as long as flow over pre-selected minimum quantity. Quick commissioning, no setting elements. Robust metal casing
Загрузки
Технические характеристики
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 37 x 50 x 30 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 17 mm |
| Branch length inside: | 12 mm |
| Emitted light: | Red, 660 nm, clocked |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 30 mA |
| Sensitivity adjustment: | no setting elements |
| Switching output: | pnp, 200 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,8 V |
| Ambient temperature, operation: | -10 … +60 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,05 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
