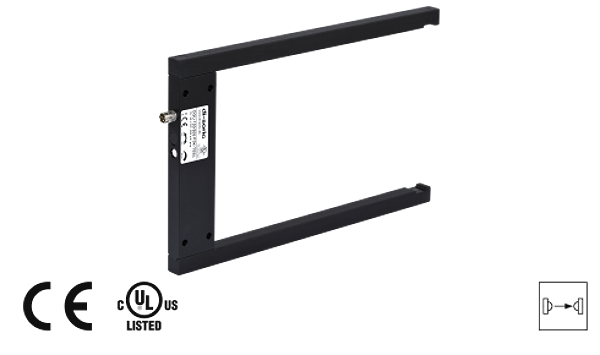

Di-soric 201342
OGU121/205P3K-TSSL
Fork Light Barrier
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Light/dark switching. Metal casing. Integrated electronic module. Sensitivity adjustable. High operating frequency. Bright ring LED. High protection class. 5-year warranty
Загрузки
Технические характеристики
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 144 x 235 x 12 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 120 mm |
| Branch length inside: | 205 mm |
| Emitted light: | Red, clocked |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 40 mA |
| Resolution: | Ø 0,8 mm |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 0,25 mm |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,8 V |
| Switching frequency: | 2000 Hz |
| Reproducibility: | 0,06 mm |
| Ambient temperature, operation: | -10 … +60 °C |
| Ambient light immunity: | 40 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | DE |
| EAN: | |
| Вес: | 0,02 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
