Di-soric
201169
ODG 50 P3K-TSSL
Сделать запрос

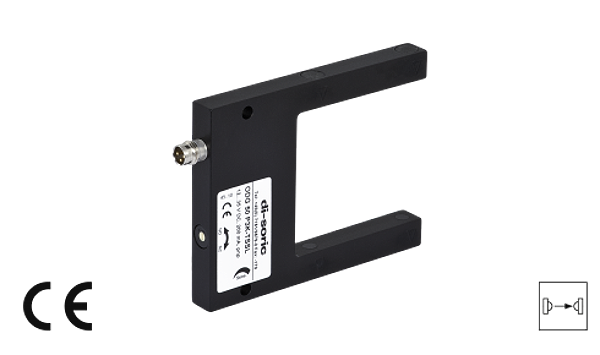

Авторское право на изображение: Di-soric
Di-soric 201169
ODG 50 P3K-TSSL
Differential Fork Light Barrier
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Light/dark switching. High resolution. Metal casing. Integrated electronic module. Differential evaluation. Sensitivity adjustable. High operating frequency. Bright ring LED. 5-year warranty
Загрузки
Технические характеристики
| Operating principle: | Optical |
| Evaluation: | digital, difference |
| Size: | 70 x 90 x 10 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 50 mm |
| Branch length inside: | 55 mm |
| Emitted light: | Infrared, non-clocked |
| Service voltage: | 12 ... 35 V DC |
| No-load current: | < 35 mA |
| Resolution: | Ø 0,1 mm |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 0,2 mm |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,5 V |
| Switching frequency: | 5000 Hz |
| Reproducibility: | 0,01 mm |
| Ambient temperature, operation: | 0 … +60 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,09 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
