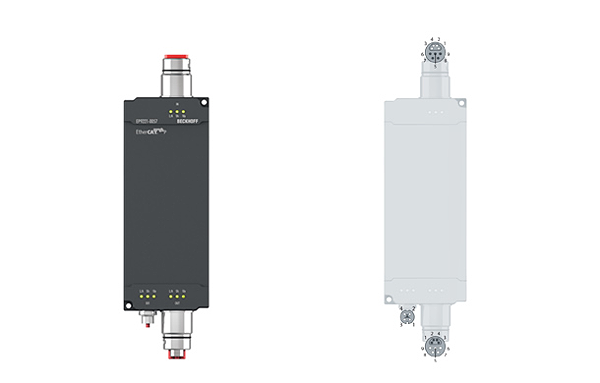

EP9221-0057 | 1-channel power distribution box ENP to EtherCAT P
Описание
The EP9221-0057 enables power distribution from a B17-ENP input to an EtherCAT P port with B17-ENP forwarding. Due to the larger cross-sectional area of the ENP cable, much longer distances can be bridged. In each EtherCAT P junction, the current consumption for the control voltage U. S, and the peripheral voltage U. P, is monitored, limited and if necessary switched off. The input voltage and current values of the EtherCAT P output can be evaluated via the process data. A 5-pin B17-ENP connector is used for communication with the box and for power supply with up to 14 A (per U. U. Several modules can be configured in a cascade arrangement through power forwarding.
Технические характеристики
| Task within EtherCAT system: | coupling to the EtherCAT network, EtherCAT P junction, feed in and monitoring of US and UP |
| Number of channels: | IN: 1 x ENP, OUT: 1 x ENP, 1 x EtherCAT P |
| Current rating per port: | max. 3 A per US and UP (M8 EtherCAT-P-coded) |
| Protocol: | EtherCAT |
| Data logging: | recording of relevant data in case of failure |
| Special features: | input voltages/currents, output currents via process data |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals: | CE, UL in preparation |
