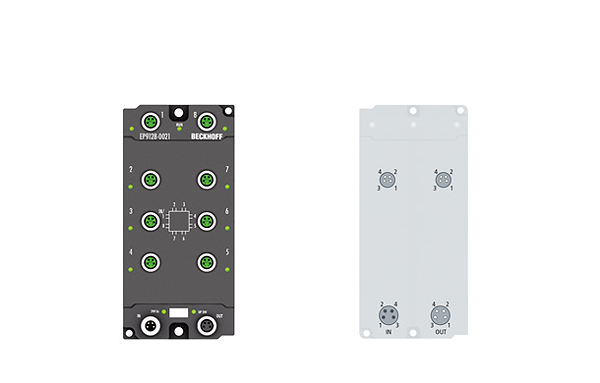

Beckhoff EP9128-0021
EP9128-0021 | EtherCAT junction, IP 67
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Line, tree or star: EtherCAT supports virtually any topologies, which can also be directly branched in the field using the EtherCAT Box modules. If several junctions are required at one point in the star topology, an EtherCAT junction can be used to branch the topology further.
Технические характеристики
| Task within EtherCAT system: | coupling of EtherCAT junctions |
| Connection method: | M8, screw type, 4-pin |
| Data transfer medium: | Ethernet/EtherCAT cable (min. Cat. 5), shielded |
| Bus interface: | 8 x M8, shielded, screw type |
| Distance between stations: | max. 100 m (100BASE-TX) |
| Protocol: | EtherCAT |
| Delay: | approx. 1 µs per port |
| Data transfer rates: | 100 Mbit/s |
| Configuration: | not required |
| Power supply: | 24 V DC (-15 %/+20 %) |
| Current consumption 24 V DC: | approx. 150 mA |
| Dimensions (W x H x D): | 60 mm x 126 mm x 26.5 mm |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
