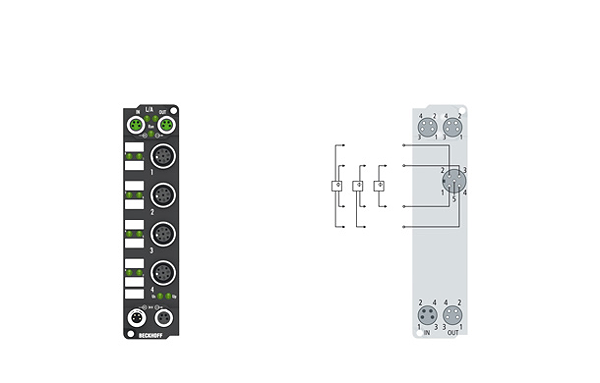

Beckhoff EP4174-0002
EP4174-0002 | 4-channel analog output ±10 V or 0/4…20 mA, parameterisable, 16 bit
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EP4174 EtherCAT Box has four analog outputs which can be individually parameterised, so that they generate signals either in the -10…+10 V or the 0/4…20 mA range. The voltage or output current is supplied to the process level with a resolution of 15 bit (default), and is electrically isolated. The output scaling can be changed if required.
Технические характеристики
| Number of channels: | 4 analog outputs |
| Number of outputs: | 4 |
| Output connections: | M12, screw type |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Signal type: | -10/0…+10 V | 0/4…20 mA |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Load: | > 5 kΩ | < 500 Ω |
| Resolution: | 16 bit |
| Conversion time: | ~ 40 µs |
| Measuring error: | < 0.1 % (relative to full scale value) |
| Actuator supply: | from the auxiliary voltage UP |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 4 x 16 bit AO output |
| Electrical isolation: | 500 V |
| Current consumption from US: | 120 mA |
| Special features: | current or voltage parameterisable per channel |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/Markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
