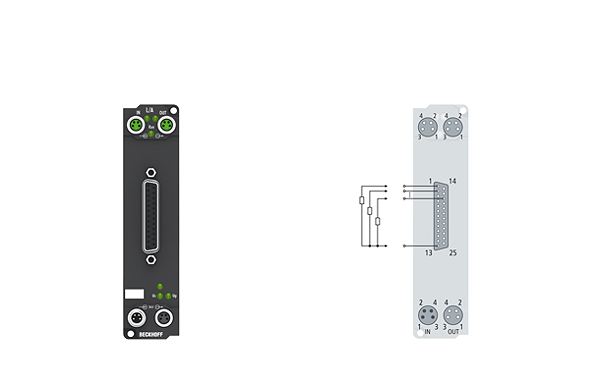

Beckhoff EP2817-0008
EP2817-0008 | 24-channel digital output 24 V DC, I, max. 0.5 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EP2817-0008 EtherCAT Box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 24 outputs handle load currents of up to 0.5 A each. All outputs are short-circuit-proof, protected against inverse connection and can be diagnosed. An output short-circuit is recognised and passed on to the controller.
Технические характеристики
| Number of outputs: | 24 |
| Output connections: | D-sub socket, 25-pin |
| Protocol: | EtherCAT |
| Load type: | ohmic, inductive, lamp load |
| Nominal output voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | 0.5 A per channel, individually short-circuit-proof, ∑ 4 A |
| Short circuit current: | max. 1.0 A |
| Distributed clocks: | yes |
| Current consumption from US: | 120 mA |
| Auxiliary power current: | typ. 20 mA + load |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 24 outputs, 24 inputs (diagnostics) |
| Electrical isolation: | 500 V |
| Special features: | undervoltage detection for US and UP < 18 V |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
