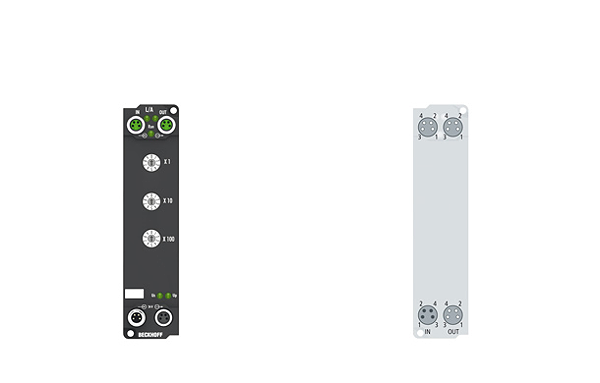

Beckhoff EP1111-0000
EP1111-0000 | EtherCAT Box with ID switch
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EP1111 has three decimal ID switches for assigning an ID to a group of EtherCAT components. This group can be present in any position in the EtherCAT network, as a result of which variable topologies can be realised in a simple manner.
Технические характеристики
| Task within EtherCAT system: | identification of any EtherCAT group in the EtherCAT network |
| Number of configurable IDs: | 999 |
| Data transfer medium: | EtherCAT cable |
| Distance between stations: | 100 m (100BASE-TX) |
| Protocol: | EtherCAT |
| Data transfer rates: | 100 Mbit/s |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Distributed clocks: | – |
| Configuration: | not required |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Power supply: | 24 V DC |
| Sensor supply: | – |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
