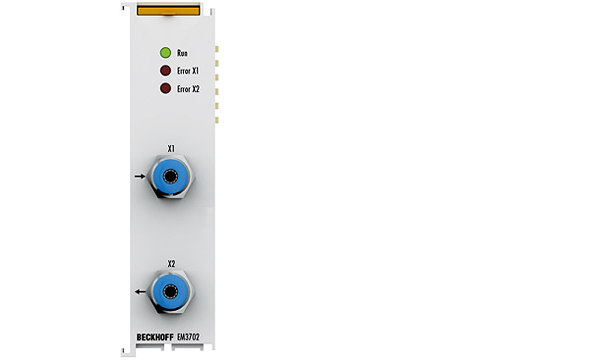

Beckhoff EM3702
EM3702 | Pressure measuring terminal
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EtherCAT Terminal system is extended with pressure measuring terminals for recording differential and relative pressures. In a similar way to electrical signal acquisition, an EtherCAT Terminal with 24 mm width is used for pressure measurement. The compact design and simple connection system supports space-saving and quick installation. Additional measuring instruments are unnecessary.
Технические характеристики
| Technology: | relative pressure measurement |
| Number of inputs: | 2 |
| Measuring error: | 3 % (relative to full scale value) |
| Measuring range: | 0…7500 hPa (7.5 bar) |
| Max. overload: | 10,000 hPa (10 bar) |
| Resolution: | 1 hPa (1 mbar) per digit |
| Measuring speed: | 4 ms typ. |
| Current consumption E-bus: | typ. 60 mA |
| Current consumption power contacts: | – (no power contacts) |
| Bit width in the process image: | 4 byte input/output per channel |
| Medium: | non-aggressive gases |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
