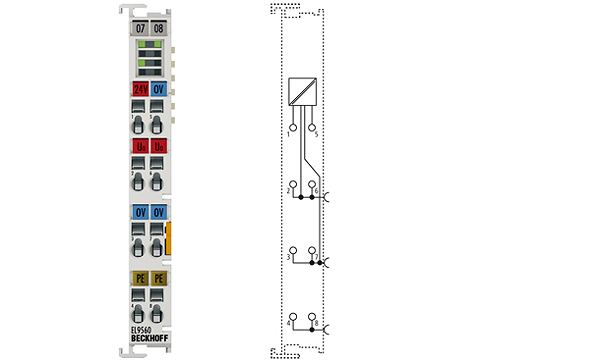

Beckhoff EL9560
EL9560 | Power supply terminal 24 V DC/24 V DC, 0.1 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9560 power supply unit terminal generates an electrically isolated output voltage from the 24 V DC input voltage. The output voltage can be accessed at the terminal. The following EtherCAT Terminals are also supplied with this voltage via the power contacts. The power LEDs indicate the operating state of the terminal. The input voltage and the output voltage of 500 V are electrically isolated.
Технические характеристики
| Technology: | power supply terminal |
| Short-circuit-proof: | yes |
| Input voltage: | 24 V DC (-15 %/+20 %) |
| Output voltage: | 24 V DC (-15 %/+5 %) |
| Output current: | ≤ 0.1 A |
| Current consumption E-bus: | 90 mA |
| Insulation voltage: | 1,500 V AC constant load field side/E-bus |
| Insulation voltage input/output: | 500 V AC permanent load (field side) |
| Special features: | automatic restart after short-circuit, diagnostics UIN/UOUT |
| Weight: | approx. 65 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL |
