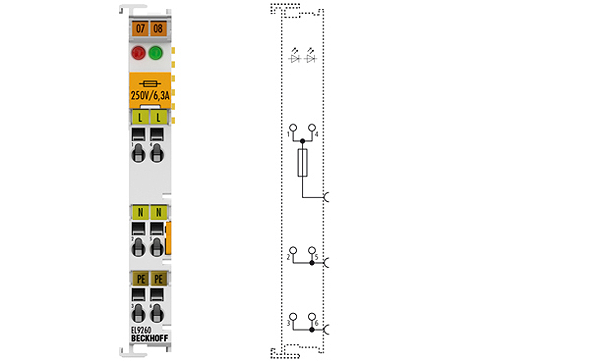

Авторское право на изображение: Beckhoff
Beckhoff EL9260
EL9260 | Potential supply terminal, 120…230 V AC, with diagnostics and fuse
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9260 power feed terminal makes it possible to set up various potential groups with the standard voltage of 230 V AC (120 V AC). In order to monitor the supply voltage, the terminals with diagnostics function report the status of the power feed terminal to the EtherCAT Coupler through two input bits. It is thus possible for the controller to check the distributed peripheral voltage over the fieldbus.
Технические характеристики
| Technology: | potential supply terminal with diagnostics and fuse |
| Current load: | ≤ 10 A |
| Power LED: | green |
| Defect LED: | red |
| Renewed infeed: | yes |
| Current consumption E-bus: | typ. 90 mA |
| Nominal voltage: | 120/230 V AC |
| Integrated fine-wire fuse: | …6.3 A |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | yes |
| Reported to E-bus: | yes |
| PE contact: | yes |
| Shield connection: | – |
| Connection facility to additional power contact: | 1 |
| Bit width in the process image: | 2 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes |
| Side by side mounting on EtherCAT Terminals without power contact: | yes |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Approvals/markings: | CE |
