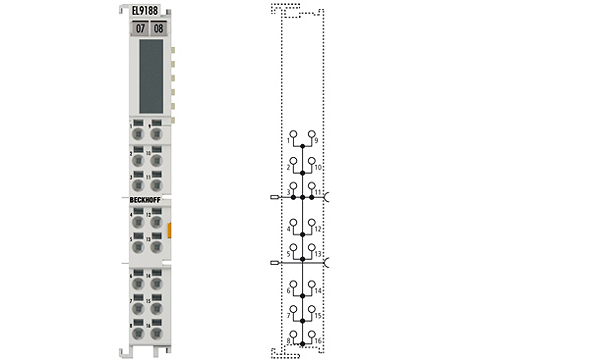

Beckhoff EL9188
EL9188 | Potential distribution terminal, 16 x 24 V DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9188 potential distribution terminal provides 16 terminal points with a potential and enables the voltage to be picked up without further bus terminal blocks or wiring.
Технические характеристики
| Technology: | potential distribution terminal |
| Number of outputs: | e.g.: 16 x 24 V contact |
| Current load: | ≤ 10 A |
| Power LED: | – |
| Defect LED: | – |
| Renewed infeed: | – |
| Current consumption E-bus: | – |
| Nominal voltage: | ≤ 60 V |
| Integrated fine-wire fuse: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | – |
| Shield connection: | – |
| Connection facility to additional power contact: | 16 |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes, left without PE |
| Side by side mounting on EtherCAT Terminals without power contact: | – |
| Special features: | direct plug-in technique |
| Conductor types: | solid wire, stranded wire and ferrule |
| Conductor connection: | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section: | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
