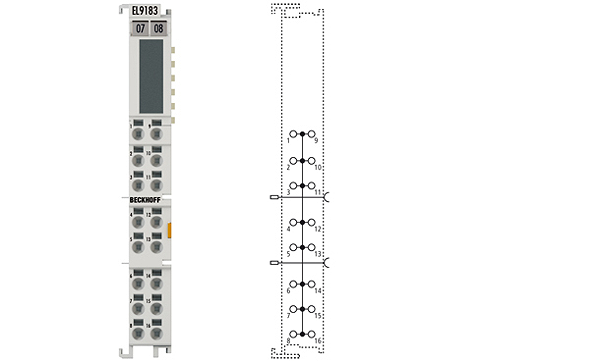

Beckhoff EL9183
EL9183 | Potential distribution terminal, 16 x 1 potential
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The potential distribution terminal EL9183 provides 16 terminal points for potential distribution and enables the voltage to be picked up without further terminal blocks or wiring. The power contacts are fed through to the next terminal without connecting to the terminal points.
Технические характеристики
| Technology: | potential distribution terminal |
| Number of separate potentials: | 1 |
| Terminal points per potential: | 16 |
| Nominal voltage: | ≤ 60 V AC/DC |
| Current load: | max. 10 A |
| Diagnostics in the process image: | – |
| Power LED: | – |
| Defect LED: | – |
| Current consumption E-bus: | – |
| E-bus looped through: | yes |
| Power contacts_looped_through: | yes (2 power contacts) |
| Bit width in the process image: | – |
| Electrical connection to DIN rail: | – |
| Electrical connection to power contacts: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Configuration: | no address or configuration setting |
| Special features: | 16-way bridge |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
