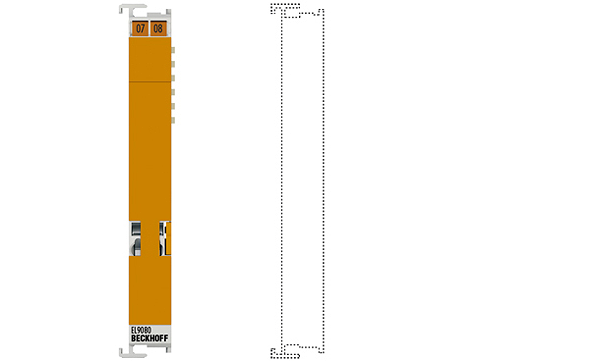

Beckhoff EL9080
EL9080 | Separation terminal
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9080 is used to identify potential groups (e.g. 230 V AC/24 V DC). It is inserted between two potential groups, and indicates the separation through an orange coloured cover.
Технические характеристики
| Technology: | separation terminal |
| Current load: | – |
| Power LED: | – |
| Defect LED: | – |
| Renewed infeed: | – |
| Current consumption E-bus: | – |
| Nominal voltage: | – |
| Integrated fine-wire fuse: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | – |
| Shield connection: | – |
| Connection facility to additional power contact: | – |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes |
| Side by side mounting on EtherCAT Terminals without power contact: | yes |
| Special features: | placeholder terminal with E-bus transmission |
| Weight: | approx. 50 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
